Product Model

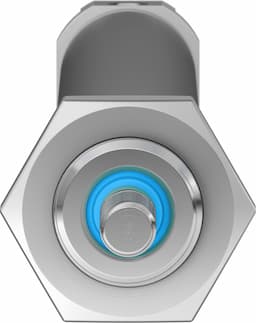

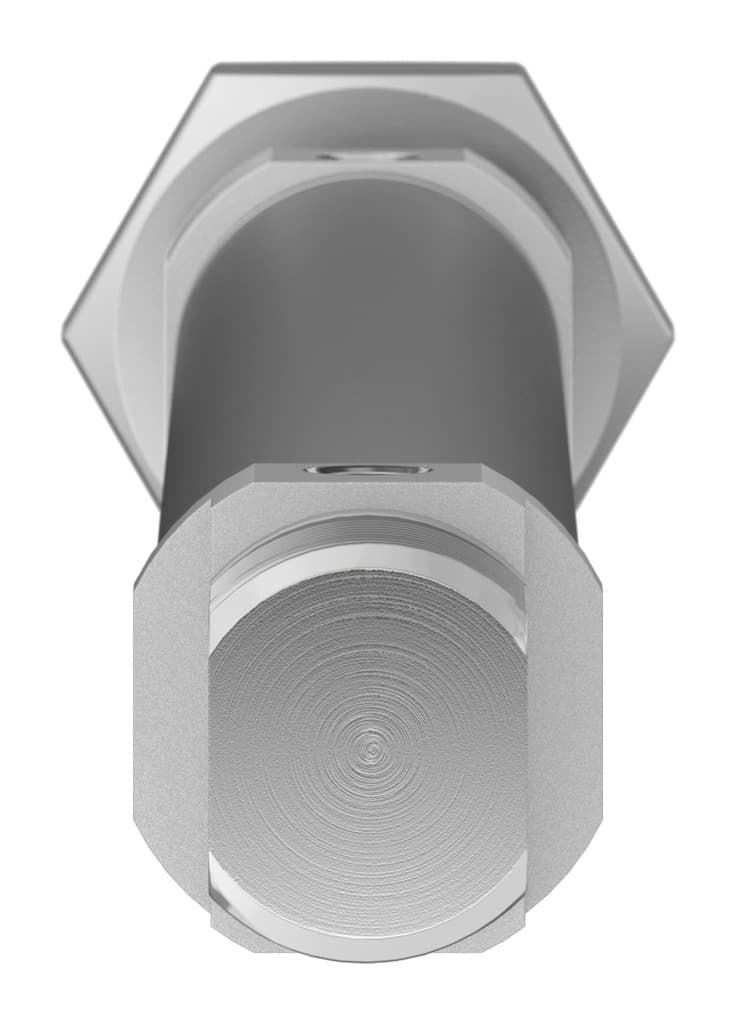

dsnu-16-150-pps-a
Selling Points
- 1The Festo DSNU-16-150-PPS-A is a double-acting pneumatic cylinder with a piston diameter of 16mm, designed for precise and reliable automation in various industrial applications.
- 2This cylinder features adjustable pneumatic cushioning at both ends, ensuring smooth and stick-slip-free operation over the full stroke length of 150mm.
- 3The DSNU-16-150-PPS-A meets the highest standards of running characteristics and service life, making it an ideal choice for demanding industrial environments.
- 4With a maximum operating pressure of 10 bar, this cylinder is suitable for a wide range of applications requiring high performance and precision.
- 5The Festo DSNU-16-150-PPS-A is compliant with DIN ISO 6432 standards and RoHS regulations, ensuring it meets the highest quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 150mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Variants | Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.15J | Cushioning length | 12mm |
Theoretical force at 6 bar, retracting | 103.7N | Theoretical force at 6 bar, advancing | 120.6N |
Moving mass at 0?mm stroke | 23g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 89.9g | Additional weight per 10?mm stroke | 4.6g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908281 |
Specifications may be subject to change without notice
