Product Model

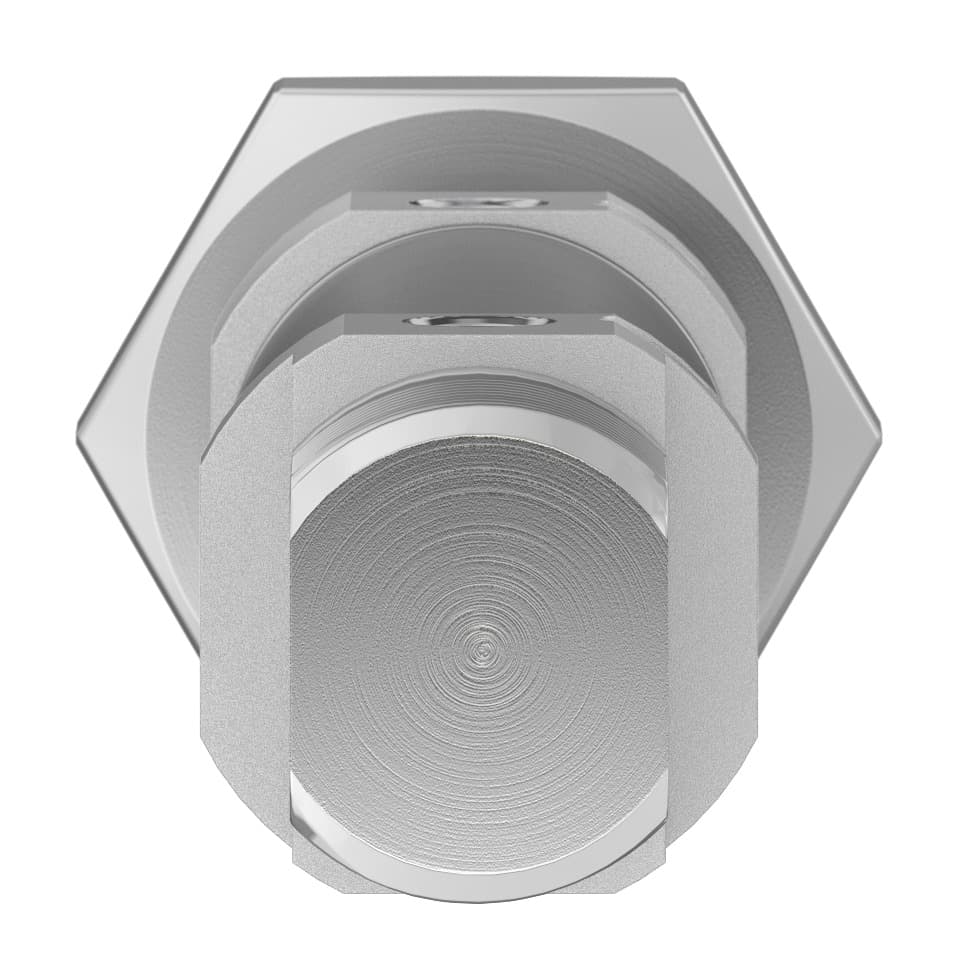

dsnu-16-15-ppv-a
Selling Points
- 1The Festo DSNU-16-15-PPV-A is a standards-based pneumatic cylinder with a 16 mm piston diameter and a 15 mm stroke length, ensuring precise and reliable operation in various industrial settings.
- 2This cylinder features adjustable pneumatic dampening on both sides, allowing for optimal cushioning and minimizing impact energy at end positions, ensuring smooth and controlled movements.
- 3The DSNU-16-15-PPV-A is built with high-alloy stainless steel for the piston rod and cylinder barrel, providing excellent corrosion resistance and durability in harsh environments.
- 4It supports operation with compressed air to ISO 8573-1:2010 [7:4:4] and can be used with oil lubrication, enhancing its performance and longevity in demanding applications.
- 5Equipped with a built-in magnet for position sensing via proximity switches, this cylinder offers precise position detection, making it ideal for applications requiring accurate control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Cushioning length | 12mm | Theoretical force at 6 bar, retracting | 103.7N |
Theoretical force at 6 bar, advancing | 120.6N | Moving mass at 0?mm stroke | 23g |
Additional moving mass per 10?mm stroke | 2g | Basic weight with 0?mm stroke | 89.9g |
Additional weight per 10?mm stroke | 4.6g | Type of mounting | With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 1908267 |
Specifications may be subject to change without notice
