Product Model
dsnu-16-25-ppv-a
Selling Points

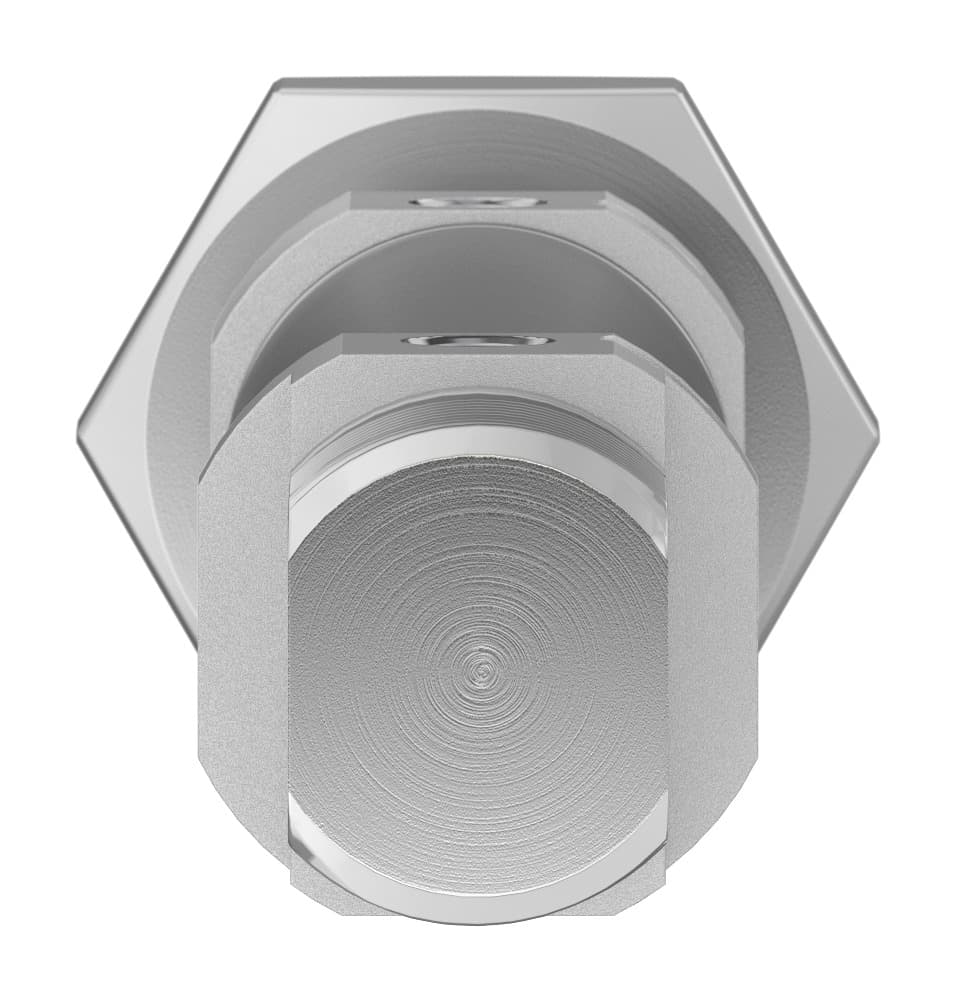

- 1The Festo DSNU-16-25-PPV-A ISO cylinder is designed to meet ISO 6432 standards, ensuring compatibility with various industrial automation systems.
- 2With a 16mm piston diameter and 25mm stroke, this cylinder offers precise and reliable motion control for a wide range of applications.
- 3The adjustable pneumatic cushioning at both ends provides enhanced performance and durability, reducing wear and tear on the cylinder.
- 4Constructed from high-alloy stainless steel for the piston rod and cylinder barrel, this cylinder ensures high corrosion resistance and durability.
- 5Operating within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), this cylinder is suitable for various industrial environments and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Cushioning length | 12mm | Theoretical force at 6 bar, retracting | 103.7N |
Theoretical force at 6 bar, advancing | 120.6N | Moving mass at 0?mm stroke | 23g |
Additional moving mass per 10?mm stroke | 2g | Basic weight with 0?mm stroke | 89.9g |
Additional weight per 10?mm stroke | 4.6g | Type of mounting | With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 33973 |
Specifications may be subject to change without notice
