Product Model

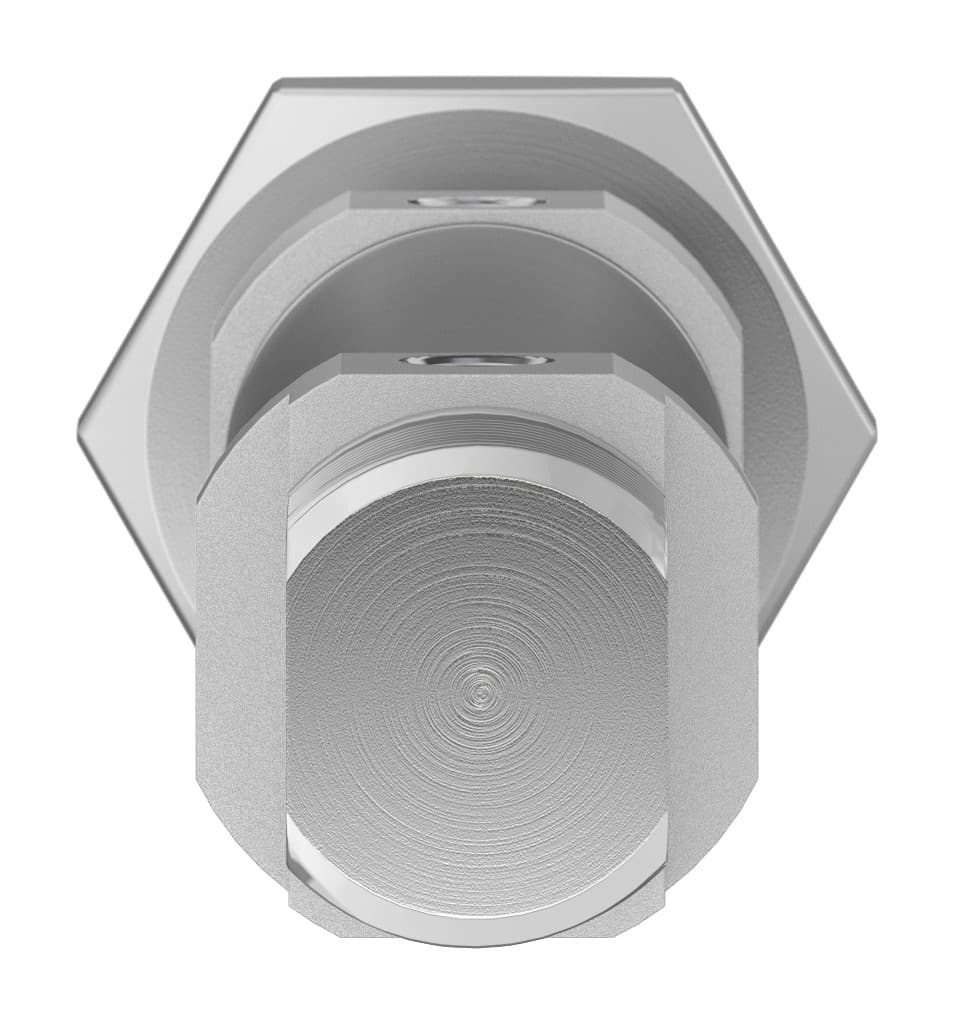

dsnu-16-35-p-a
Selling Points
- 1The Festo DSNU-16-35-P-A ISO cylinder is a double-acting pneumatic cylinder that meets ISO 6432 standards, ensuring high precision and reliability in industrial applications.
- 2With a 16mm piston diameter and 35mm stroke, this cylinder offers a versatile solution for various mechanical tasks, including positioning and actuation.
- 3Equipped with elastic cushioning rings/plates at both ends, the DSNU-16-35-P-A provides smooth operation and reduces wear on the cylinder.
- 4The cylinder features a M6 piston rod thread and is designed for use with compressed air according to ISO 8573-1:2010 [7:4:4], ensuring efficient operation.
- 5The Festo DSNU-16-35-P-A cylinder is constructed from high-alloy stainless steel, offering moderate corrosion resistance and durability in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 35mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Theoretical force at 6 bar, retracting | 103.7N | Theoretical force at 6 bar, advancing | 120.6N |
Moving mass at 0?mm stroke | 23g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 89.9g | Additional weight per 10?mm stroke | 4.6g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908262 |
Specifications may be subject to change without notice
