Product Model
dsnu-16-40-p-a
Selling Points

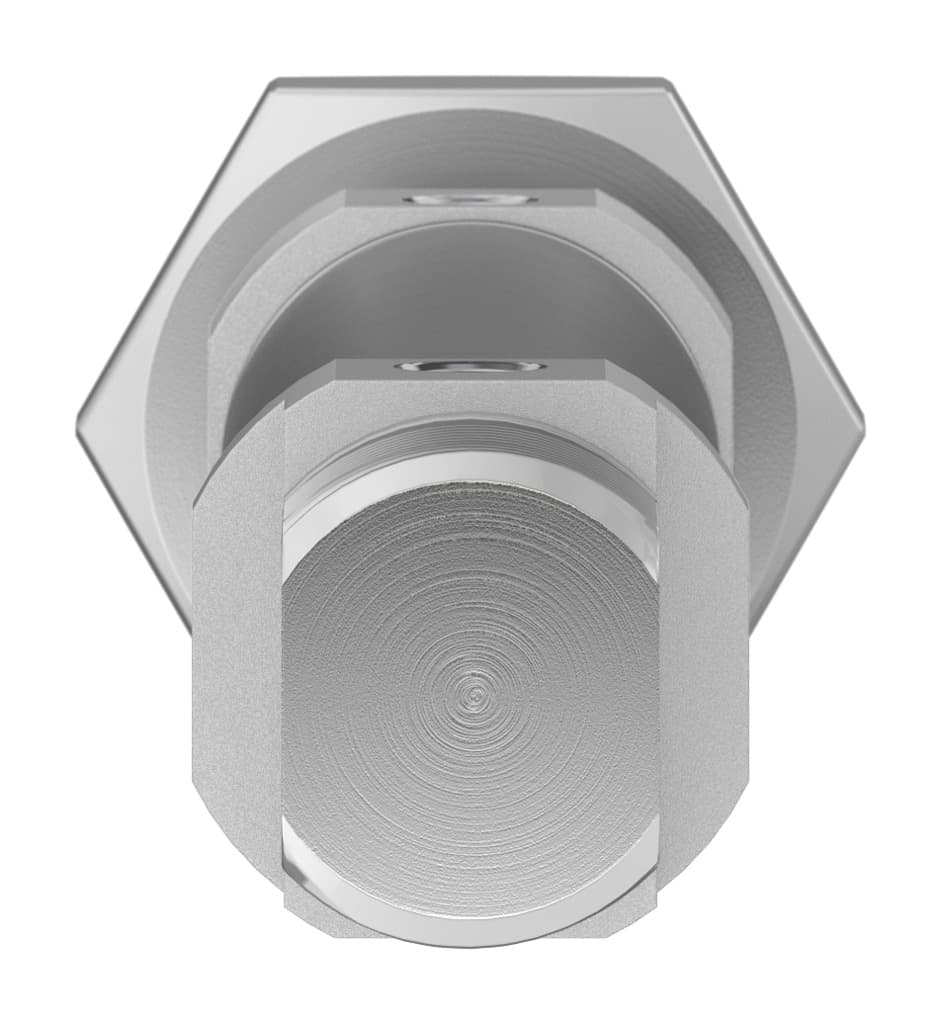

- 1The Festo DSNU-16-40-P-A pneumatic cylinder features a stroke of 40 mm and a piston diameter of 16 mm, ensuring precise control in various industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, enhancing its lifespan.
- 3The cylinder is designed to operate within a wide temperature range of -20 °C to 80 °C, making it suitable for diverse environmental conditions.
- 4With a piston rod thread of M6 and a mounting position that can be adjusted, the DSNU-16-40-P-A offers flexibility in installation and integration with other components.
- 5Conforming to the ISO 6432 standard, this cylinder ensures compatibility with standardized systems and components, simplifying integration into existing automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Theoretical force at 6 bar, retracting | 103.7N | Theoretical force at 6 bar, advancing | 120.6N |
Moving mass at 0?mm stroke | 23g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 89.9g | Additional weight per 10?mm stroke | 4.6g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19200 |
Specifications may be subject to change without notice
