Product Model

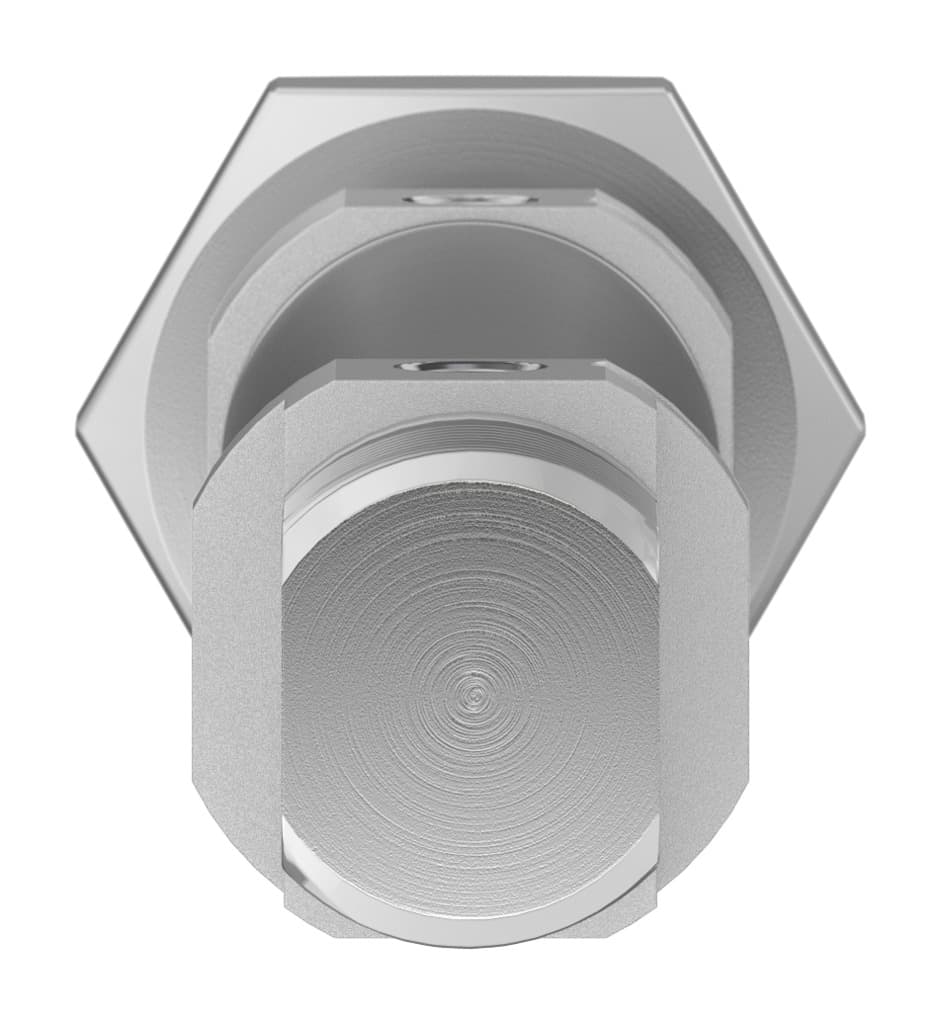

dsnu-16-40-ppv-a
Selling Points
- 1The DSNU-16-40-PPV-A pneumatic cylinder features a stroke length of 40 mm, making it ideal for applications requiring precise movement and control.
- 2With a piston diameter of 16 mm and an M6 piston rod thread, this cylinder offers robust construction and easy integration into various automation systems.
- 3The cylinder is equipped with adjustable pneumatic cushioning at both ends, ensuring smooth operation and minimizing wear and tear.
- 4Conforming to standards CETOP RP 52 P and ISO 6432, the DSNU-16-40-PPV-A ensures compatibility with a wide range of industrial automation setups.
- 5Designed for double-acting operation with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder provides reliable performance in various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Cushioning length | 12mm | Theoretical force at 6 bar, retracting | 103.7N |
Theoretical force at 6 bar, advancing | 120.6N | Moving mass at 0?mm stroke | 23g |
Additional moving mass per 10?mm stroke | 2g | Basic weight with 0?mm stroke | 89.9g |
Additional weight per 10?mm stroke | 4.6g | Type of mounting | With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 19229 |
Specifications may be subject to change without notice
