Product Model

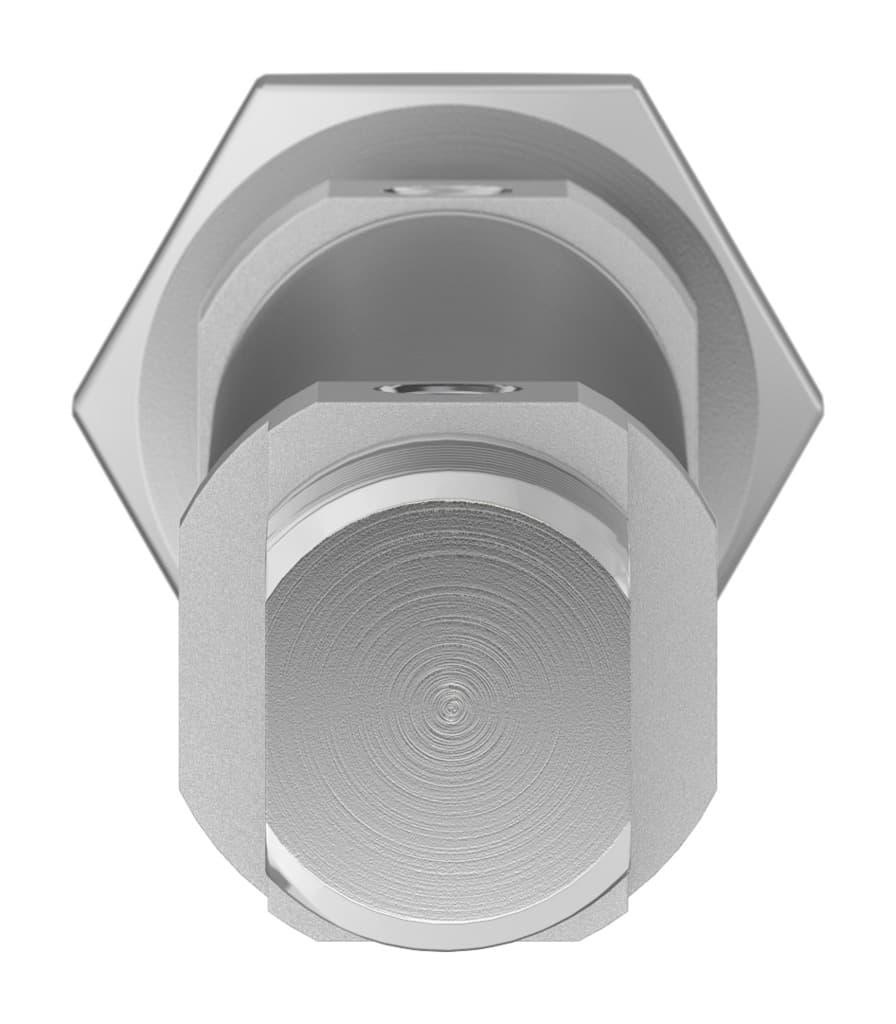

dsnu-16-60-pps-a
Selling Points
- 1The Festo DSNU-16-60-PPS-A ISO cylinder offers a 60mm stroke and a 16mm piston diameter, providing precise control and reliable operation in various applications.
- 2Equipped with self-adjusting pneumatic end-position cushioning, this cylinder ensures smooth and controlled movements, reducing wear and tear on the system.
- 3Designed to operate within a wide pressure range of 1 to 10 bar, the DSNU-16-60-PPS-A is versatile and can be used in diverse industrial settings.
- 4The cylinder is constructed from high-alloy stainless steel for the piston rod and cylinder barrel, ensuring high corrosion resistance and durability.
- 5Compliant with ISO 6432 standards and CETOP RP 52 P, the DSNU-16-60-PPS-A meets stringent quality and performance criteria, making it a reliable choice for industrial automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 60mm | Piston diameter | 16 mm |
Piston rod thread | M6 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Variants | Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.15J | Cushioning length | 12mm |
Theoretical force at 6 bar, retracting | 103.7N | Theoretical force at 6 bar, advancing | 120.6N |
Moving mass at 0?mm stroke | 23g | Additional moving mass per 10?mm stroke | 2g |
Basic weight with 0?mm stroke | 89.9g | Additional weight per 10?mm stroke | 4.6g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908279 |
Specifications may be subject to change without notice
