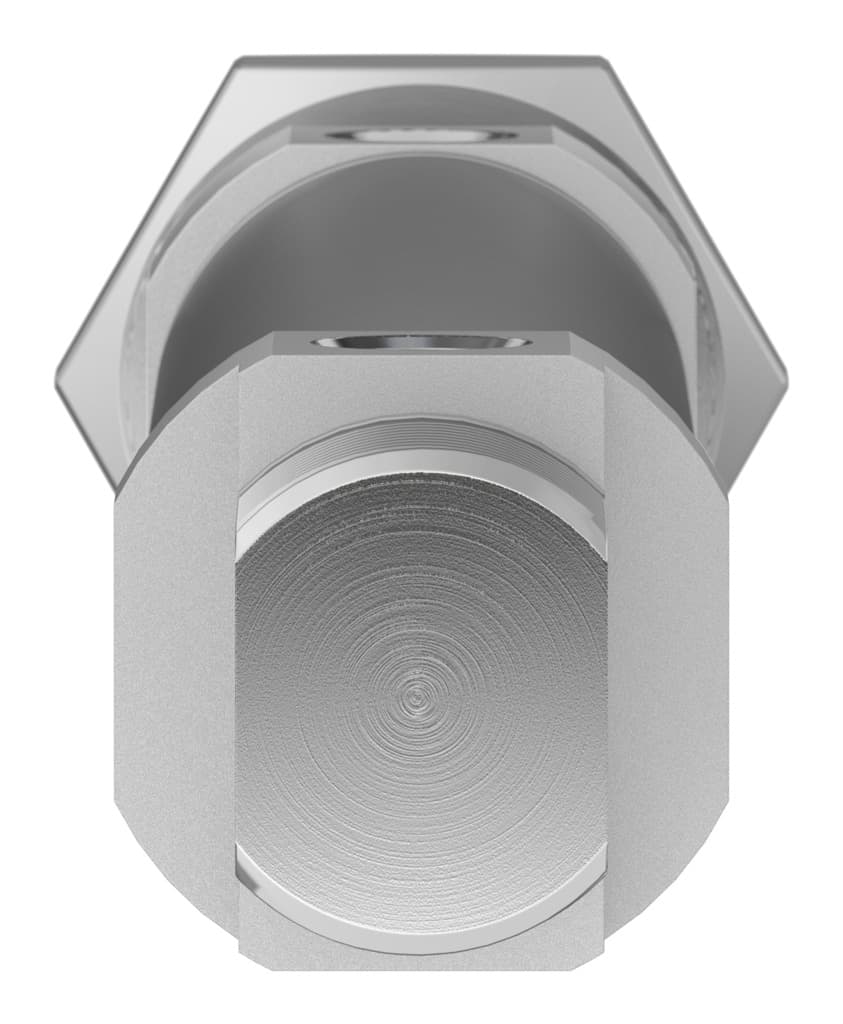

Product Model
dsnu-1"- -p-a
Selling Points
- 1The Festo DSNU-1"-PPV-A pneumatic cylinder offers adjustable air cushioning at both ends, reducing noise and vibration, making it suitable for medium to heavy loads and high-speed applications.
- 2Equipped with a built-in position sensing magnet, this cylinder allows for contactless position detection via proximity sensors, enhancing precision in automation systems.
- 3Designed to meet ISO 6432 standards, the DSNU-1"-PPV-A provides metric mounting dimensions for interchangeability with commonly used hydraulic and pneumatic cylinders.
- 4The cylinder features a high-alloy steel piston rod with threaded connectors, ensuring excellent running performance and long service life.
- 5Ideal for double-acting operations, this pneumatic actuator offers dual connection ports for compressed air, allowing for advancing and retracting the piston rod in a linear motion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10.16mm 508mm | Piston diameter | 1" |
Piston rod thread | 3/8-24 UNF-2A | Based on norm | ISO 6432 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.30004J | Theoretical force at 6 bar, retracting | 220.098N |
Theoretical force at 6 bar, advancing | 262N | Moving mass at 0?mm stroke | 70.988g |
Additional weight per 10?mm stroke | 6.01g | Type of mounting | With accessories |
Pneumatic connection | 1/8 NPT | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 548487 |
Specifications may be subject to change without notice
