Product Model

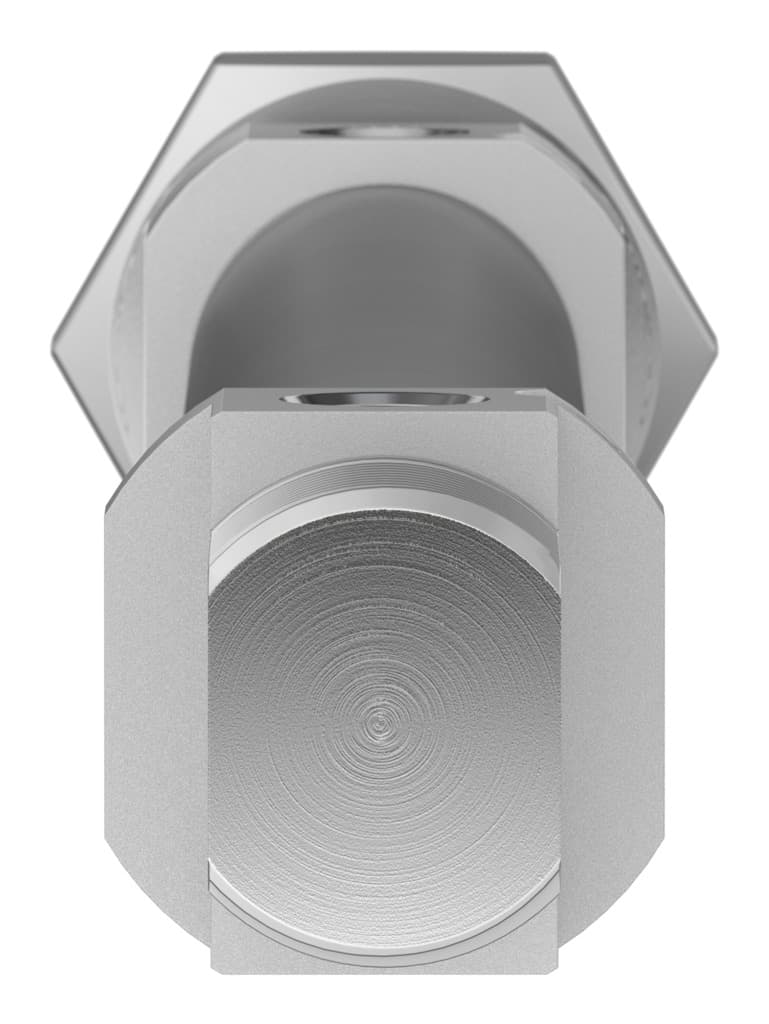

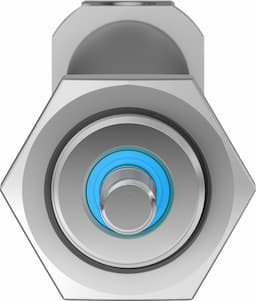

dsnu-20-160-ppv-a
Selling Points
- 1The Festo DSNU-20-160-PPV-A pneumatic cylinder features a stroke length of 160 mm, making it suitable for various automation applications.
- 2With a piston diameter of 20 mm and a piston rod thread of M8, this cylinder offers precise control and easy integration into your system.
- 3The cylinder is equipped with pneumatic cushioning, adjustable at both ends, ensuring smooth operation and reduced wear.
- 4The DSNU-20-160-PPV-A cylinder is designed for double-acting operation, allowing for both extension and retraction strokes, enhancing its versatility in automation tasks.
- 5Constructed from high-alloy stainless steel for the piston rod and cylinder barrel, this cylinder provides excellent corrosion resistance and durability, making it ideal for demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 160mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Cushioning length | 15mm | Theoretical force at 6 bar, retracting | 158.3N |
Theoretical force at 6 bar, advancing | 188.5N | Moving mass at 0?mm stroke | 44g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 186.8g |
Additional weight per 10?mm stroke | 7.2g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 19241 |
Specifications may be subject to change without notice
