Product Model

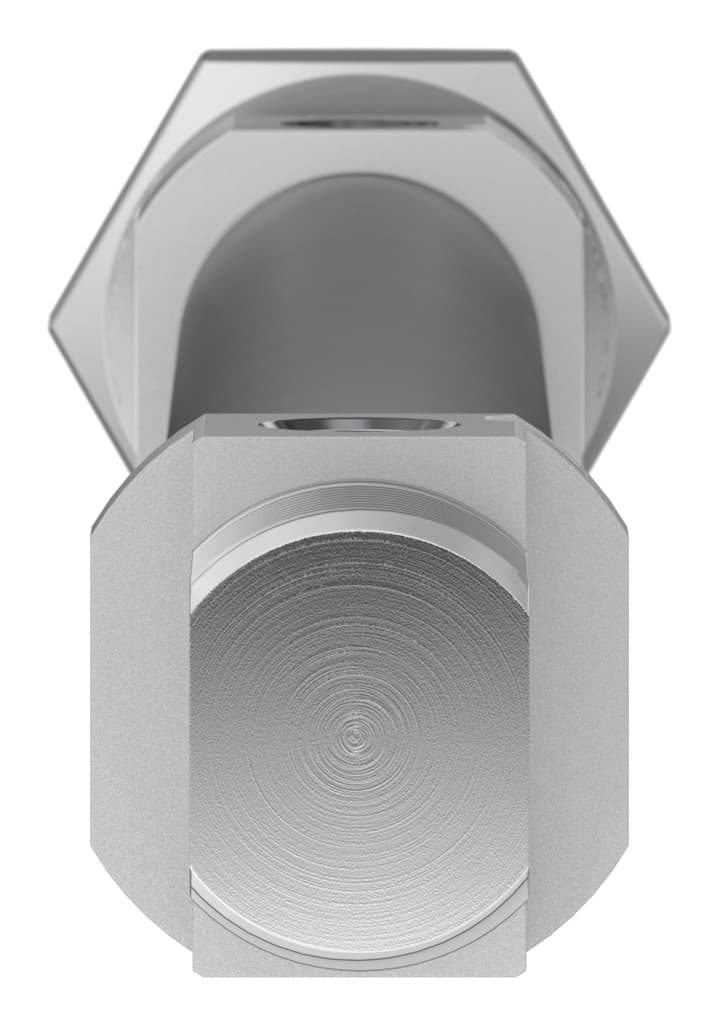

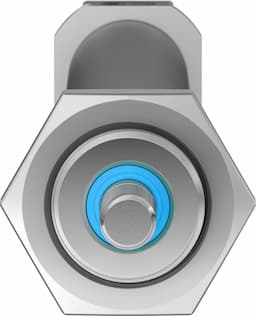

dsnu-20-200-ppv-a
Selling Points
- 1The DSNU-20-200-PPV-A pneumatic cylinder by Festo is designed for proximity sensing, ensuring precise positioning in industrial applications.
- 2This cylinder features adjustable end-position cushioning, providing enhanced safety and durability.
- 3With a stroke length of 200 mm and a piston diameter of 20 mm, it offers a versatile solution for various mounting options.
- 4Conforming to DIN ISO 6432 and CETOP RP 52 standards, this cylinder ensures compatibility with a wide range of industrial systems.
- 5Operating under compressed air according to ISO8573-1:2010 [7:4:4], it provides reliable performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 200mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Cushioning length | 15mm | Theoretical force at 6 bar, retracting | 158.3N |
Theoretical force at 6 bar, advancing | 188.5N | Moving mass at 0?mm stroke | 44g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 186.8g |
Additional weight per 10?mm stroke | 7.2g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 19242 |
Specifications may be subject to change without notice
