Product Model

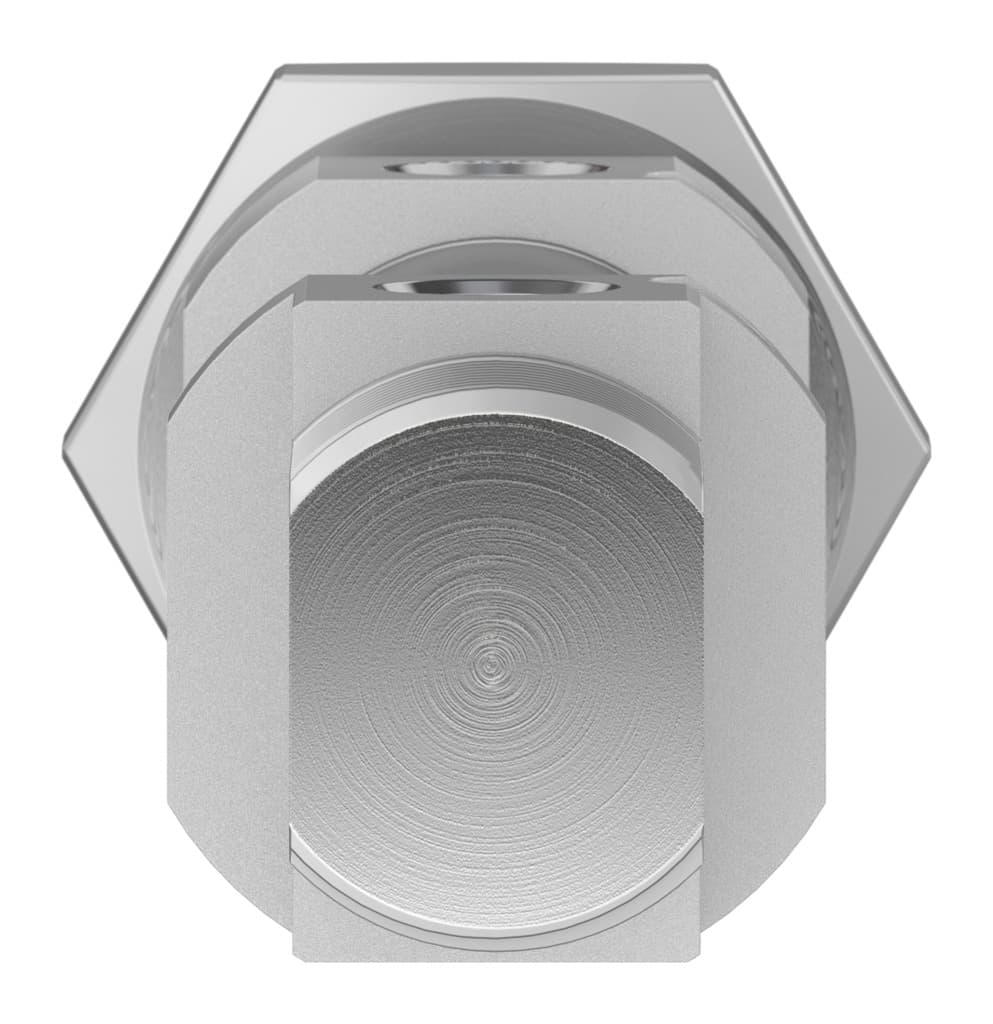

dsnu-20-25-ppv-a
Selling Points
- 1The Festo DSNU-20-25-PPV-A pneumatic cylinder features a double-acting design with a 20 mm piston diameter and a 25 mm stroke, ensuring precise and reliable operation in various automation applications.
- 2This cylinder is equipped with pneumatic cushioning, adjustable at both ends, which enhances its performance by reducing shock and improving smooth motion.
- 3The DSNU-20-25-PPV-A cylinder is made from high-quality materials, including high-alloy stainless steel for the piston rod and cylinder barrel, ensuring durability and resistance to corrosion.
- 4It conforms to international standards such as CETOP RP 52 P ISO 6432, ensuring compatibility and reliability in a wide range of industrial settings.
- 5The Festo DSNU-20-25-PPV-A cylinder is designed for use with compressed air as per ISO 8573-1:2010, making it suitable for various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Cushioning length | 15mm | Theoretical force at 6 bar, retracting | 158.3N |
Theoretical force at 6 bar, advancing | 188.5N | Moving mass at 0?mm stroke | 44g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 186.8g |
Additional weight per 10?mm stroke | 7.2g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 33974 |
Specifications may be subject to change without notice
