Product Model

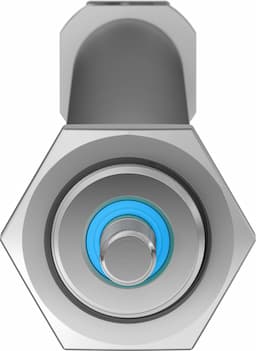

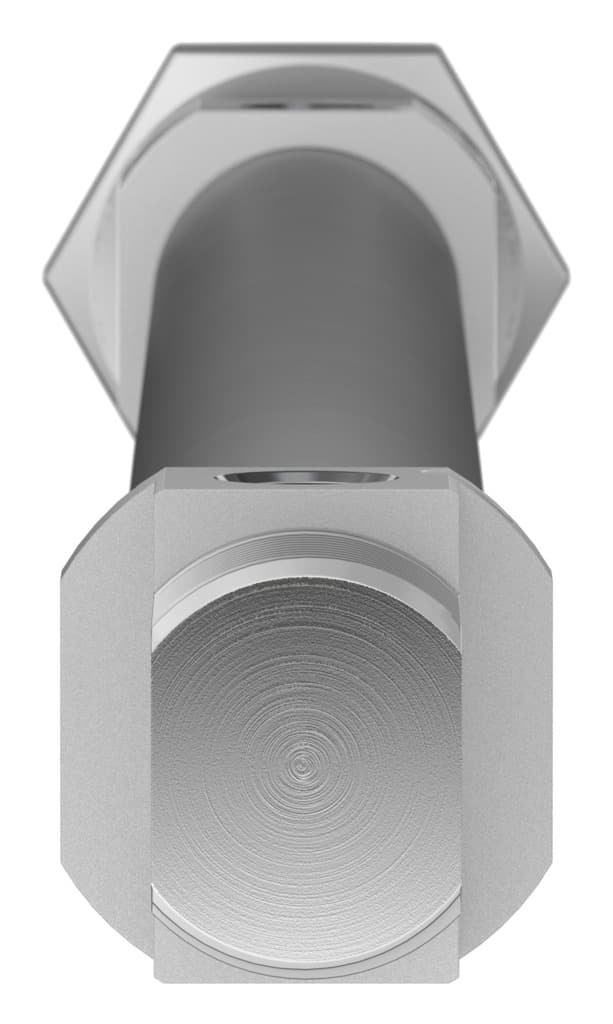

dsnu-20-300-ppv-a
Selling Points
- 1The Festo DSNU-20-300-PPV-A pneumatic cylinder offers adjustable cushioning at both ends, ensuring smooth and controlled movements in various industrial applications.
- 2This ISO 6432 compliant cylinder features a piston diameter of 20 mm and a stroke length of 300 mm, making it versatile for a wide range of automation tasks.
- 3Constructed with high-quality materials, including high-alloy stainless steel for the piston rod and cylinder barrel, ensuring durability and resistance to corrosion.
- 4The cylinder is designed with a male thread on the piston rod (M8) and is compatible with various pneumatic systems, including those requiring lubricated operation.
- 5The Festo DSNU-20-300-PPV-A cylinder is suitable for double-acting operations and can be used in cleanroom environments, meeting Class 6 standards according to ISO 14644-1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 300mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Cushioning length | 15mm | Theoretical force at 6 bar, retracting | 158.3N |
Theoretical force at 6 bar, advancing | 188.5N | Moving mass at 0?mm stroke | 44g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 186.8g |
Additional weight per 10?mm stroke | 7.2g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 19244 |
Specifications may be subject to change without notice
