Product Model

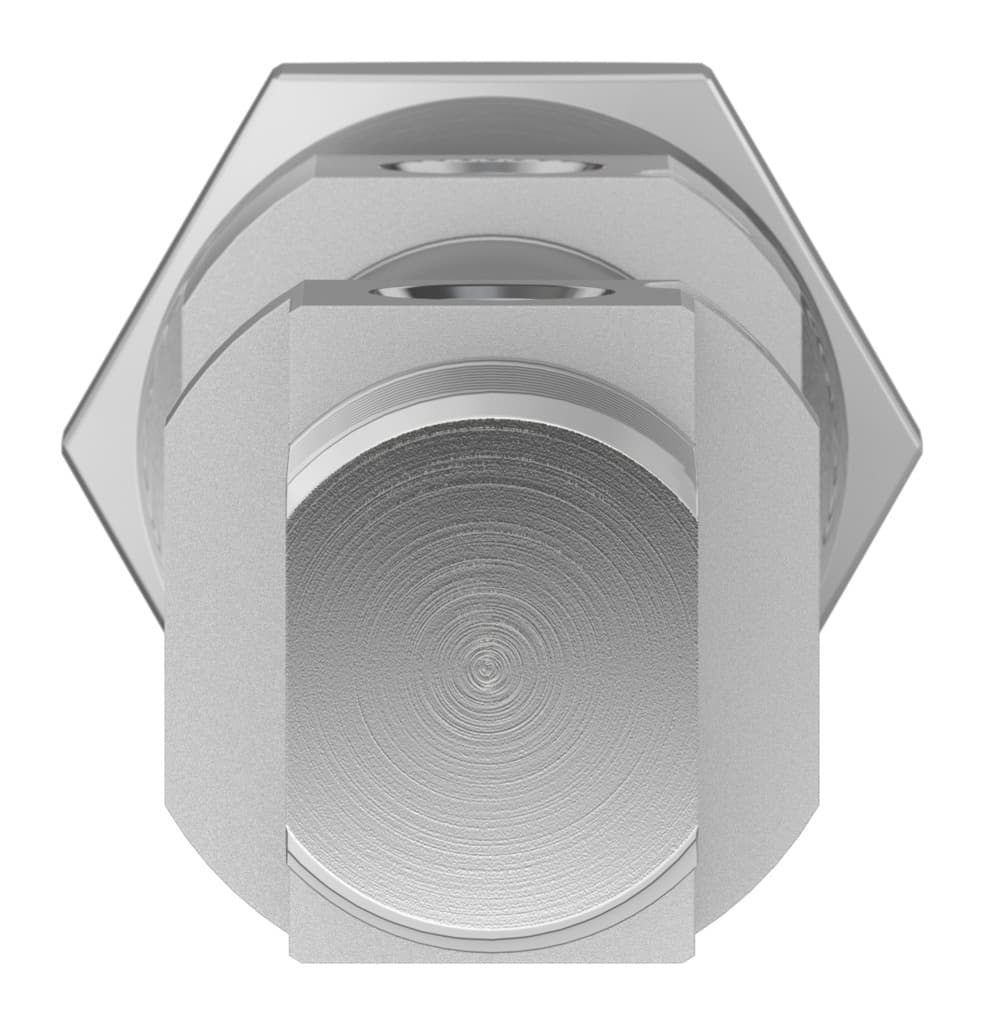

dsnu-20-30-ppv-a
Selling Points
- 1The DSNU-20-30-PPV-A pneumatic cylinder offers adjustable end-position cushioning, ensuring smooth and controlled movements in various automation tasks.
- 2With a stroke range of 10 to 320 mm, this cylinder is versatile and can be used in a variety of applications, including slow stroke movements and constant speed operations.
- 3The cylinder features a piston diameter of 20 mm and a piston rod thread of M8, making it compatible with a wide range of Festo pneumatic systems.
- 4The DSNU-20-30-PPV-A is designed to work with proximity sensors, requiring a stroke of at least 10 mm for position sensing, enhancing precision in automation processes.
- 5This cylinder is constructed with high-quality materials, ensuring durability and reliability in demanding industrial environments, with operating pressures ranging from 1 to 10 bar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 30mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Cushioning length | 15mm | Theoretical force at 6 bar, retracting | 158.3N |
Theoretical force at 6 bar, advancing | 188.5N | Moving mass at 0?mm stroke | 44g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 186.8g |
Additional weight per 10?mm stroke | 7.2g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 1908292 |
Specifications may be subject to change without notice
