Product Model

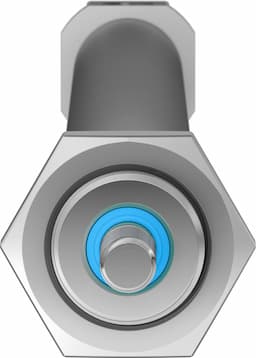

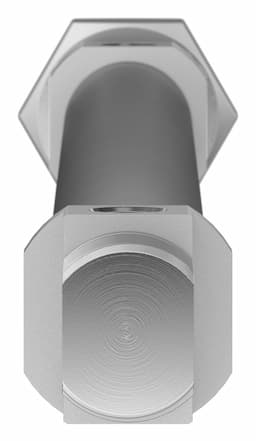

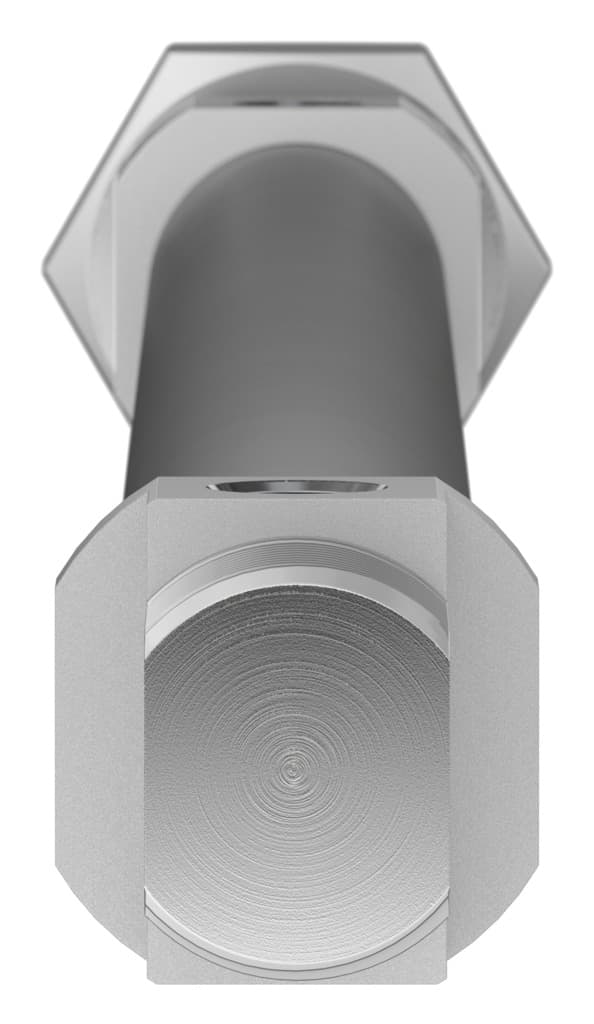

dsnu-20-320-p-a
Selling Points
- 1The Festo DSNU-20-320-P-A ISO cylinder is built to last with durable materials and robust design, ensuring reliable performance in demanding industrial environments.
- 2Equipped with flexible cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
- 3Meets the ISO 6432 standard, ensuring compatibility with a wide range of pneumatic systems and applications, making it a versatile choice for industrial automation.
- 4Designed for double-acting operation, this cylinder can move in both directions, offering greater flexibility and efficiency in various industrial processes.
- 5With a simple and standardized design, the Festo DSNU-20-320-P-A ISO cylinder is easy to integrate into existing pneumatic systems, reducing setup time and complexity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 320mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Theoretical force at 6 bar, retracting | 158.3N | Theoretical force at 6 bar, advancing | 188.5N |
Moving mass at 0?mm stroke | 44g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 186.8g | Additional weight per 10?mm stroke | 7.2g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 34718 |
Specifications may be subject to change without notice
