Product Model

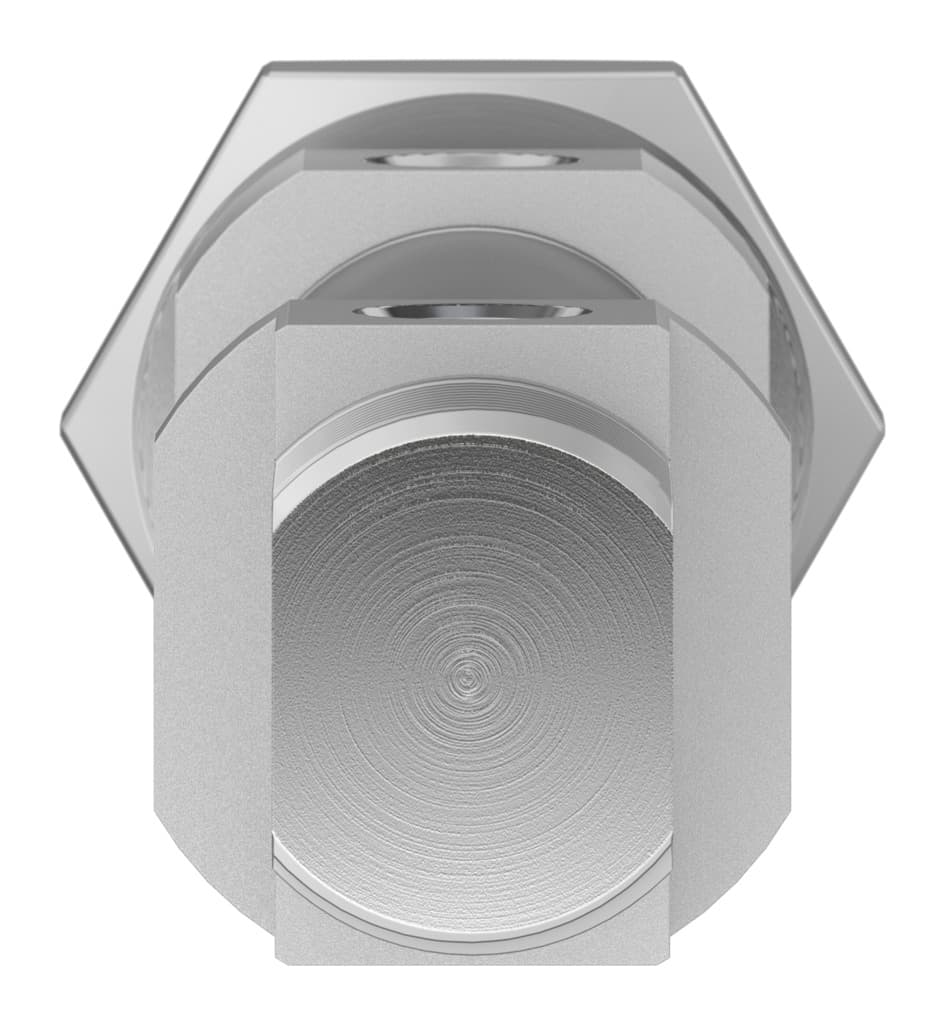

dsnu-20-50-p-a
Selling Points
- 1The Festo DSNU-20-50-P-A ISO cylinder is built with high-alloy stainless steel for the piston rod and cylinder barrel, ensuring durability and resistance to corrosion.
- 2This cylinder conforms to ISO 6432 standards and CETOP RP 52 P, making it easy to integrate into various industrial systems.
- 3Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 4The DSNU-20-50-P-A offers optional mounting positions, allowing for flexible installation in different applications.
- 5Designed for double-acting mode with compressed air to ISO 8573-1:2010, this cylinder ensures reliable operation in a wide range of pressures (0.1 MPa to 1 MPa).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Theoretical force at 6 bar, retracting | 158.3N | Theoretical force at 6 bar, advancing | 188.5N |
Moving mass at 0?mm stroke | 44g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 186.8g | Additional weight per 10?mm stroke | 7.2g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19210 |
