Product Model

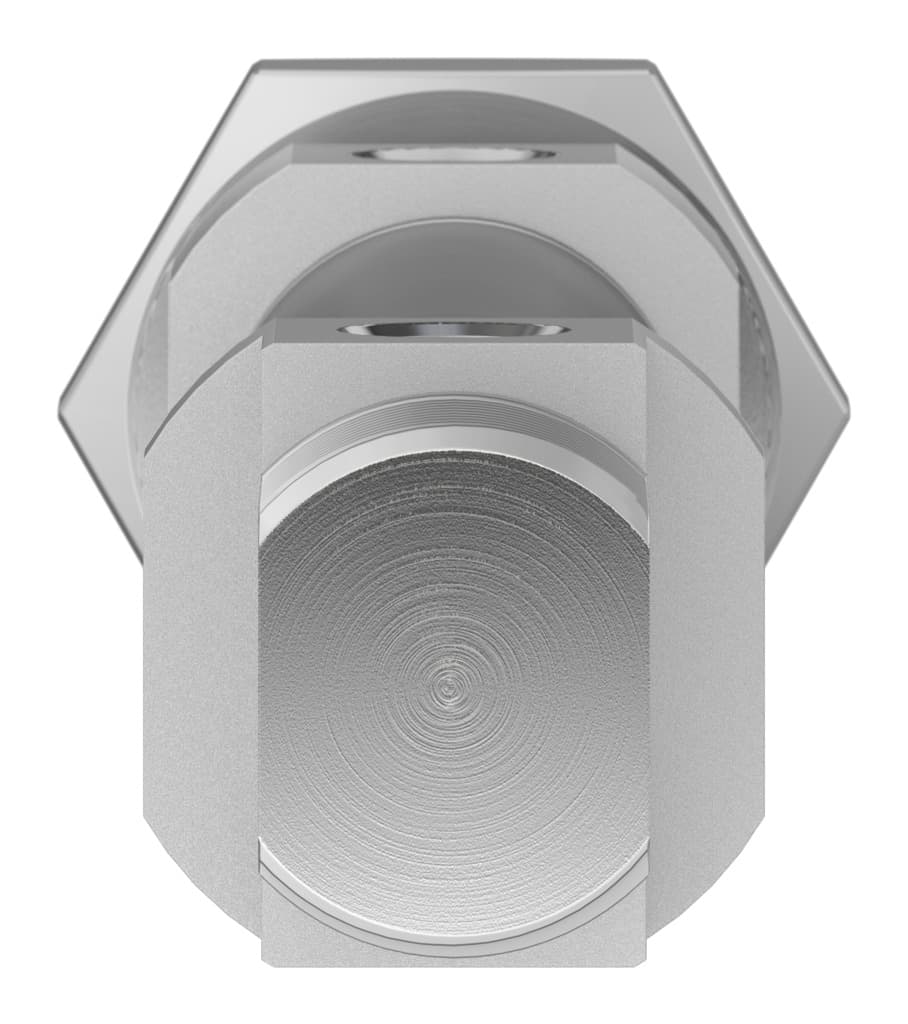

dsnu-20-70-p-a
Selling Points
- 1The Festo DSNU-20-70-P-A pneumatic cylinder features a piston diameter of 20 mm and a stroke length of 70 mm, making it suitable for a wide range of industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth and precise motion, reducing wear and tear on the system.
- 3The DSNU-20-70-P-A cylinder is designed for double-acting operation, allowing for both extension and retraction strokes, enhancing its versatility in various automation tasks.
- 4With a corrosion resistance class of CRC 2, this cylinder is built to withstand moderate corrosion stress, ensuring reliability in harsh environments.
- 5The cylinder operates within a temperature range of -20 °C to 80 °C, making it suitable for a variety of industrial settings and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 70mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Theoretical force at 6 bar, retracting | 158.3N | Theoretical force at 6 bar, advancing | 188.5N |
Moving mass at 0?mm stroke | 44g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 186.8g | Additional weight per 10?mm stroke | 7.2g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908287 |
Specifications may be subject to change without notice
