Product Model

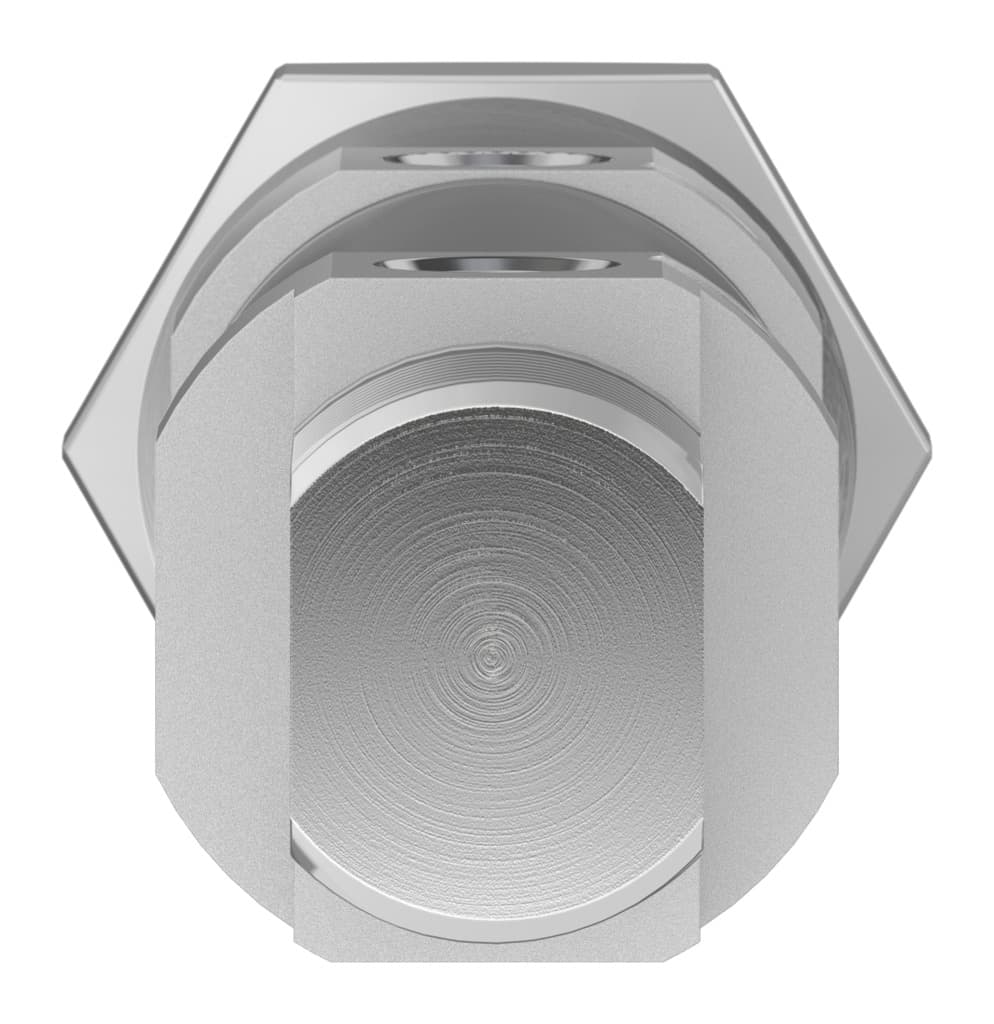

dsnu-25-15-ppv-a
Selling Points
- 1The DSNU-25-15-PPV-A cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in various industrial applications.
- 2With a corrosion resistance classification of CRC 2, this cylinder is designed to withstand moderate corrosion stress, making it suitable for harsh environments.
- 3The DSNU-25-15-PPV-A operates double-acting, allowing for both extension and retraction strokes, enhancing the versatility and efficiency of your automation system.
- 4This cylinder conforms to the CETOP RP 52 P and ISO 6432 standards, ensuring compatibility with a wide range of industrial automation systems.
- 5The cylinder can be installed in any position, providing flexibility in system design and integration, making it an ideal choice for various industrial automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 247.4N |
Theoretical force at 6 bar, advancing | 294.5N | Moving mass at 0?mm stroke | 71g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 238g |
Additional weight per 10?mm stroke | 11g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 1908313 |
Specifications may be subject to change without notice
