Product Model

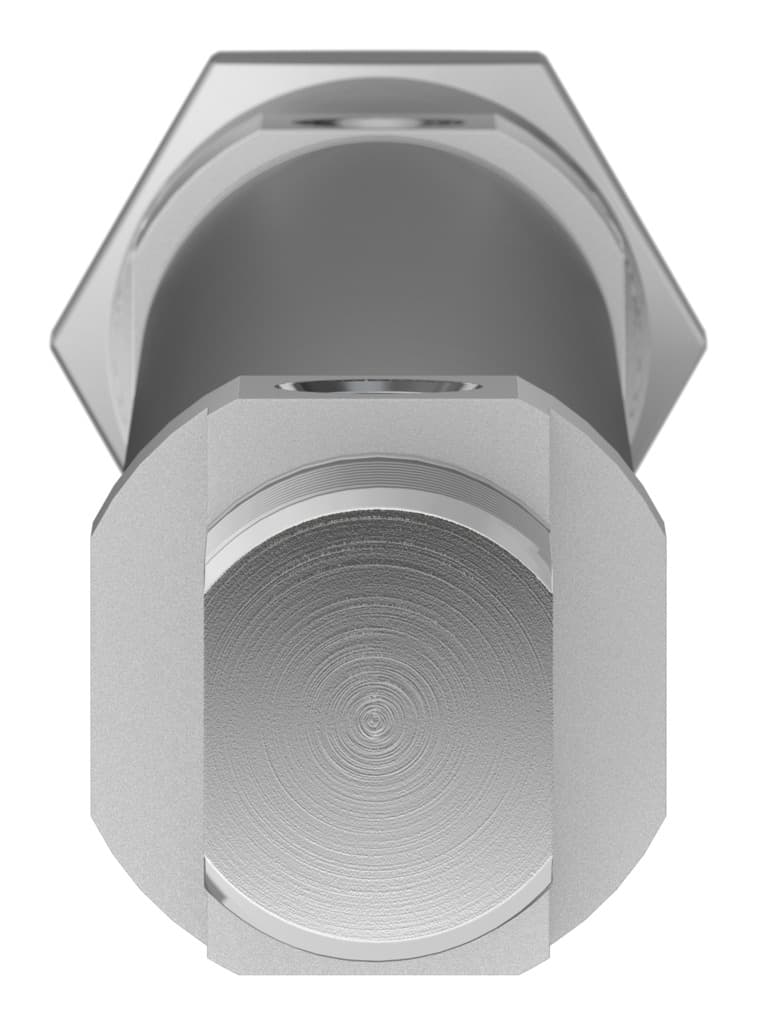

dsnu-25-160-p-a
Selling Points
- 1The Festo DSNU-25-160-P-A is a standards-based pneumatic cylinder that conforms to ISO 6432 and CETOP RP 52 P, ensuring high-quality and reliable performance in proximity sensing applications.
- 2This cylinder features adjustable end-position cushioning, providing flexible and customizable damping to suit various operational needs.
- 3With a piston diameter of 25 mm and a stroke of 160 mm, the DSNU-25-160-P-A offers a robust and precise movement solution for industrial automation applications.
- 4The cylinder is designed for double-acting operation, allowing for both extension and retraction, and can operate within a pressure range of 1 to 10 bar.
- 5The Festo DSNU-25-160-P-A is constructed with high-alloyed stainless steel materials, ensuring corrosion resistance and durability in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 160mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Theoretical force at 6 bar, retracting | 247.4N | Theoretical force at 6 bar, advancing | 294.5N |
Moving mass at 0?mm stroke | 71g | Additional moving mass per 10?mm stroke | 6g |
Basic weight with 0?mm stroke | 238g | Additional weight per 10?mm stroke | 11g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 19225 |
Specifications may be subject to change without notice
