Product Model

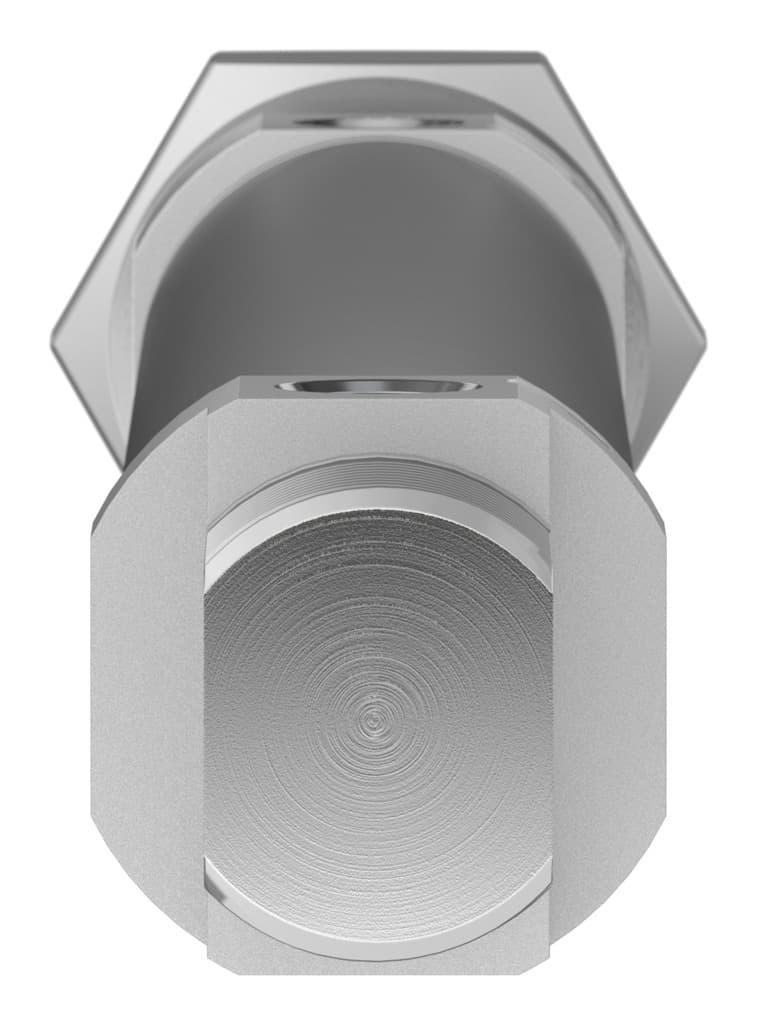

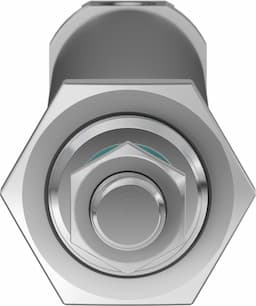

dsnu-25-160-ppv-a
Selling Points
- 1The Festo DSNU-25-160-PPV-A is a double-acting pneumatic cylinder with a stroke length of 160 mm and a piston diameter of 25 mm, making it versatile for various industrial applications.
- 2This cylinder features pneumatic cushioning that is adjustable at both ends, ensuring smooth operation and reducing wear on the cylinder.
- 3The DSNU-25-160-PPV-A conforms to the ISO 6432 standard and CETOP RP 52 P, ensuring compatibility with a wide range of industrial systems.
- 4With a mounting position that is optional and a male thread on the piston-rod end, this cylinder offers flexibility in installation and integration.
- 5The Festo DSNU-25-160-PPV-A operates within a pressure range of 1 to 10 bar, making it suitable for a variety of industrial processes that require precise control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 160mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 247.4N |
Theoretical force at 6 bar, advancing | 294.5N | Moving mass at 0?mm stroke | 71g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 238g |
Additional weight per 10?mm stroke | 11g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 19250 |
Specifications may be subject to change without notice
