Product Model

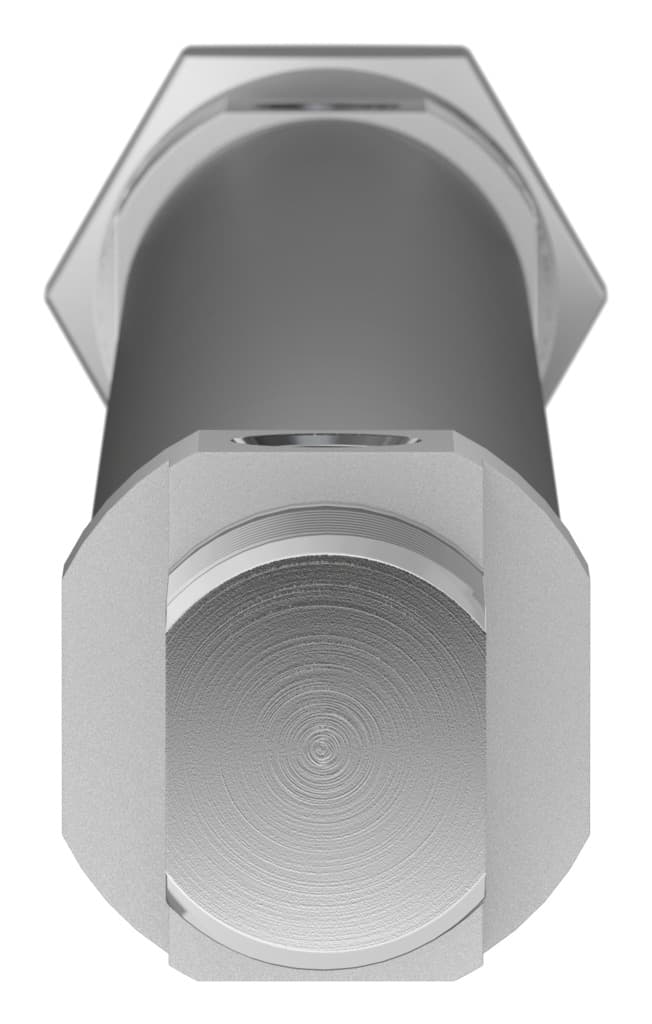

dsnu-25-250-pps-a
Selling Points
- 1High-Quality Construction: Built with high-alloy stainless steel for durability and corrosion resistance.
- 2Self-Adjusting Cushioning: Ensures optimal performance by adapting to changes in load and speed.
- 3ISO 6432 Compliance: Meets international standards for pneumatic cylinders, ensuring reliability and consistency.
- 4Versatile Mounting Options: Can be mounted in any position with optional accessories for flexibility.
- 5Compressed Air Operation: Designed for use with compressed air to ISO 8573-1:2010 [7:4:4] standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 247.4N |
Theoretical force at 6 bar, advancing | 294.5N | Moving mass at 0?mm stroke | 71g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 238g |
Additional weight per 10?mm stroke | 11g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 559290 |
Specifications may be subject to change without notice
