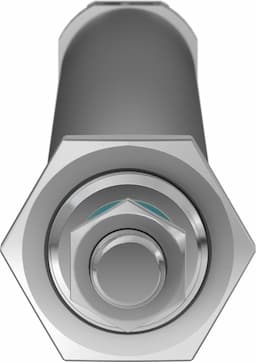

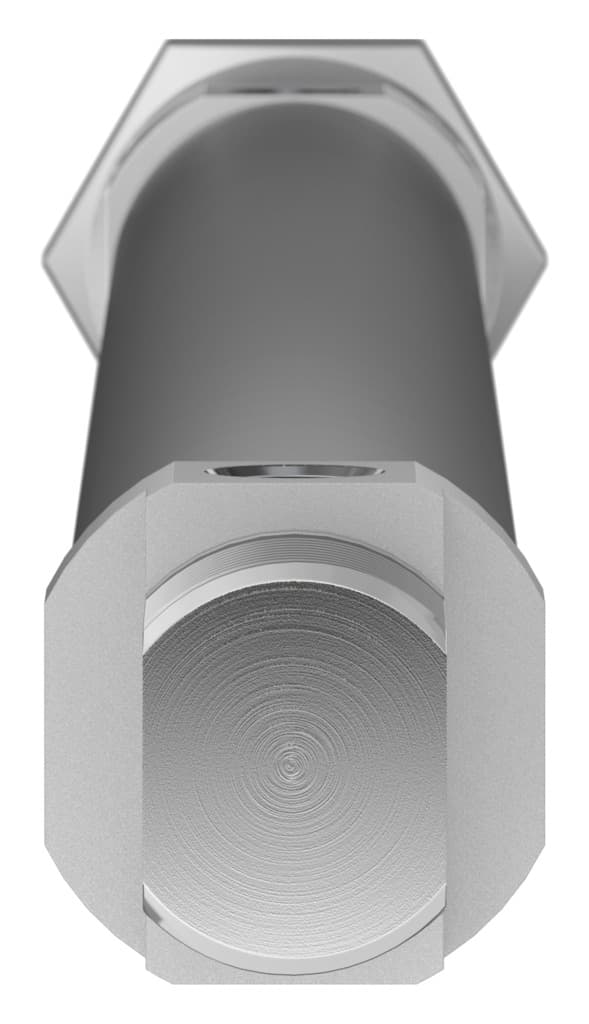

Product Model
dsnu-25-500-p-a
Selling Points
- 1The DSNU-25-500-P-A offers a 500mm stroke, making it suitable for a wide range of industrial applications where extended movement is required.
- 2Equipped with elastic cushioning rings/pads at both ends, this cylinder provides smooth operation and reduces wear on the piston rod.
- 3With a corrosion resistance class of CRC 2, the DSNU-25-500-P-A is designed to withstand moderate corrosion stress, ensuring long-term reliability.
- 4This cylinder can be mounted in any position, offering flexibility in system design and installation.
- 5Conforms to CETOP RP 52 P and ISO 6432 standards, ensuring compatibility with various industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 500mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Theoretical force at 6 bar, retracting | 247.4N | Theoretical force at 6 bar, advancing | 294.5N |
Moving mass at 0?mm stroke | 71g | Additional moving mass per 10?mm stroke | 6g |
Basic weight with 0?mm stroke | 238g | Additional weight per 10?mm stroke | 11g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 35192 |
Specifications may be subject to change without notice
