Product Model

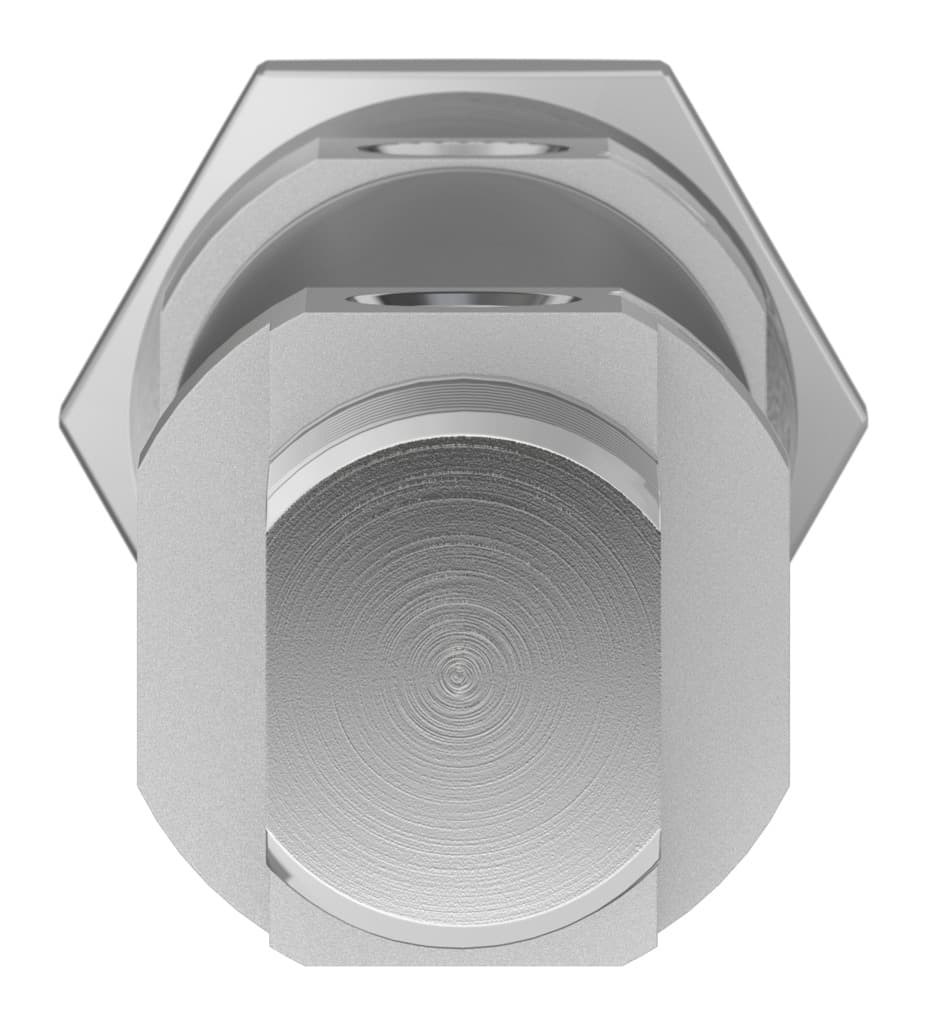

dsnu-25-50-ppv-a
Selling Points
- 1The Festo DSNU-25-50-PPV-A pneumatic cylinder offers a stroke length of 50 mm and a piston diameter of 25 mm, making it versatile for various automation tasks.
- 2This cylinder features pneumatic cushioning that is adjustable at both ends, ensuring smooth operation and extended lifespan.
- 3Designed for double-acting operation, the DSNU-25-50-PPV-A can handle both forward and return strokes efficiently, enhancing productivity in your automation setup.
- 4The cylinder is compatible with proximity sensors, allowing for precise position detection and integration into advanced automation systems.
- 5With an operating pressure range of 1 to 10 bar, the DSNU-25-50-PPV-A is suitable for a wide range of industrial applications, ensuring reliable performance under various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 247.4N |
Theoretical force at 6 bar, advancing | 294.5N | Moving mass at 0?mm stroke | 71g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 238g |
Additional weight per 10?mm stroke | 11g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 19246 |
Specifications may be subject to change without notice
