Product Model

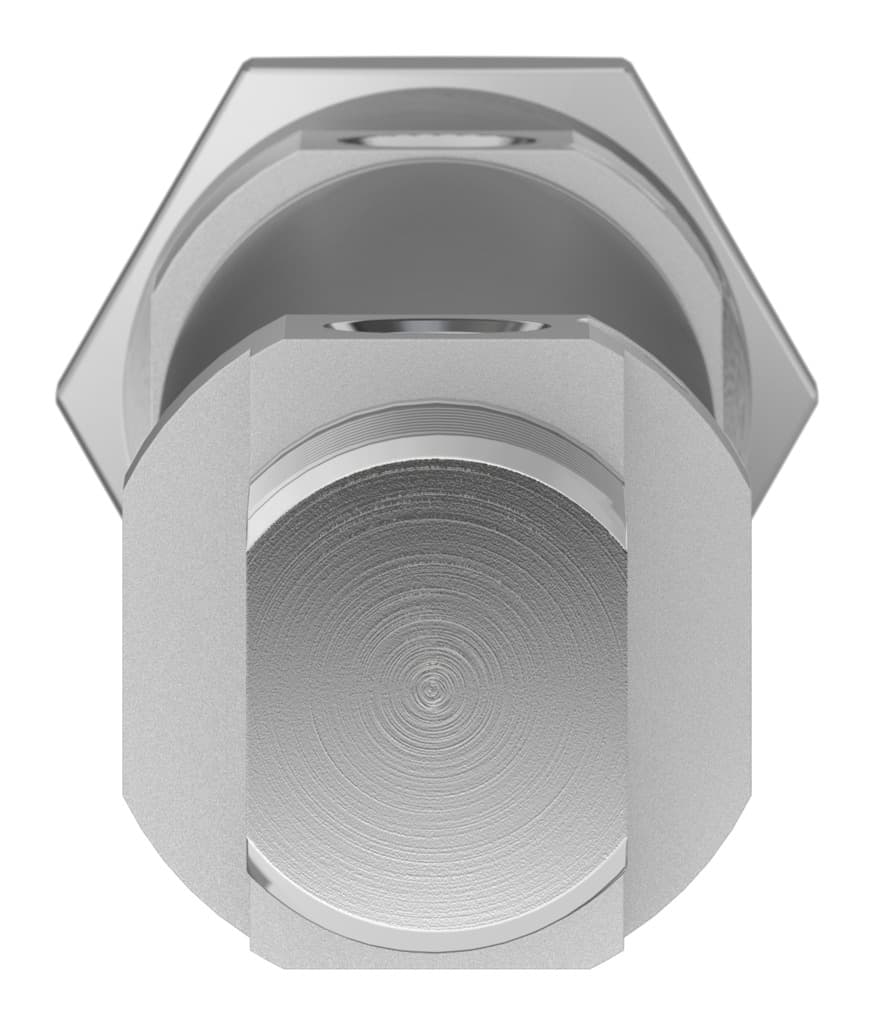

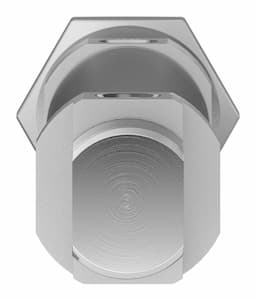

dsnu-25-80-ppv-a
Selling Points
- 1The DSNU-25-80-PPV-A cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in various industrial applications.
- 2This cylinder conforms to the ISO 6432 standard, ensuring compatibility and reliability in a wide range of industrial settings.
- 3Designed for double-acting operation, the DSNU-25-80-PPV-A cylinder can handle both forward and backward movements efficiently, making it versatile for various automation tasks.
- 4Constructed from high alloy steel for the piston rod and cylinder barrel, this cylinder ensures durability and resistance to corrosion, making it suitable for demanding industrial environments.
- 5With a mounting position that can be any, the DSNU-25-80-PPV-A cylinder offers flexibility in installation, allowing it to be integrated into a variety of automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 25 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 247.4N |
Theoretical force at 6 bar, advancing | 294.5N | Moving mass at 0?mm stroke | 71g |
Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 238g |
Additional weight per 10?mm stroke | 11g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 19247 |
Specifications may be subject to change without notice
