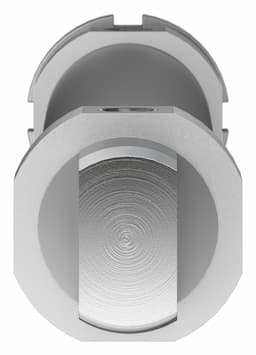

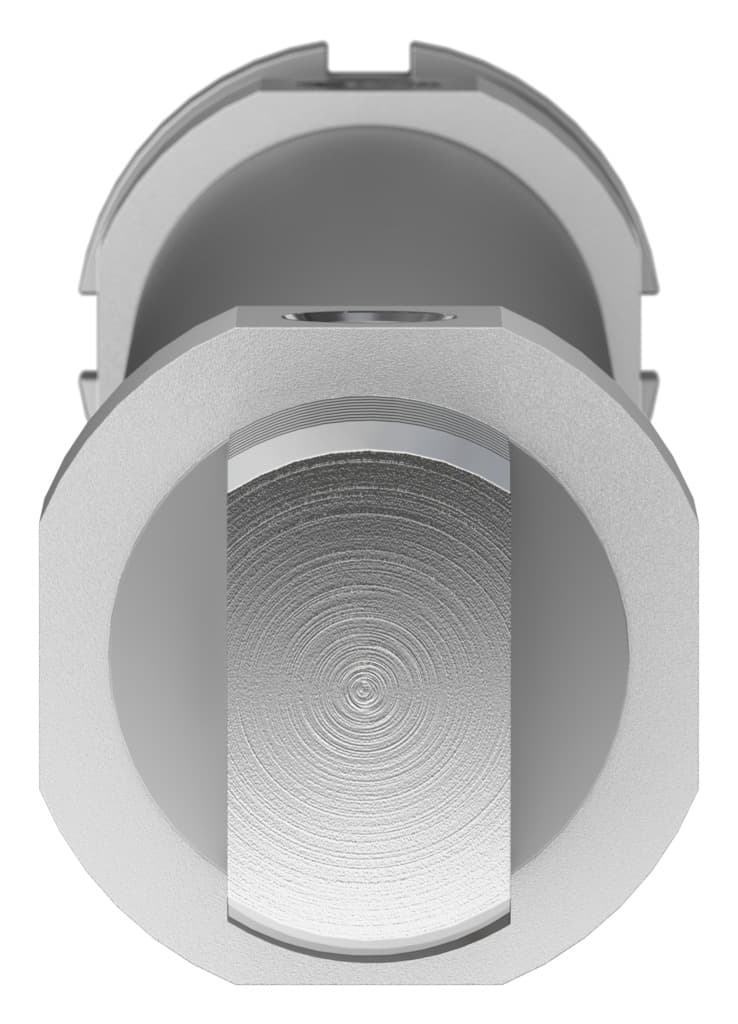

Product Model
dsnu-32-200-p-a
Selling Points
- 1The Festo DSNU-32-200-PPV-A pneumatic cylinder offers efficient automation solutions with its adjustable pneumatic cushioning at both ends, ensuring smooth and precise movements.
- 2Made from high-alloy stainless steel, this cylinder provides excellent corrosion resistance, making it suitable for various industrial environments.
- 3The DSNU-32-200-PPV-A cylinder supports various mounting positions and configurations, including direct mounting and lateral air connection, enhancing its versatility in different applications.
- 4With a stroke of 200 mm and a piston diameter of 32 mm, this cylinder ensures reliable operation under pressures ranging from 0.1 MPa to 1 MPa, providing consistent performance in your automation needs.
- 5The Festo DSNU-32-200-PPV-A cylinder is designed for easy integration into your existing systems, offering standardized dimensions and mounting interfaces for seamless connectivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 200mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 482.5N |
Moving mass | 301g | Product weight | 680g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 195987 |
Specifications may be subject to change without notice
