Product Model
dsnu-32-250-p-a
Selling Points

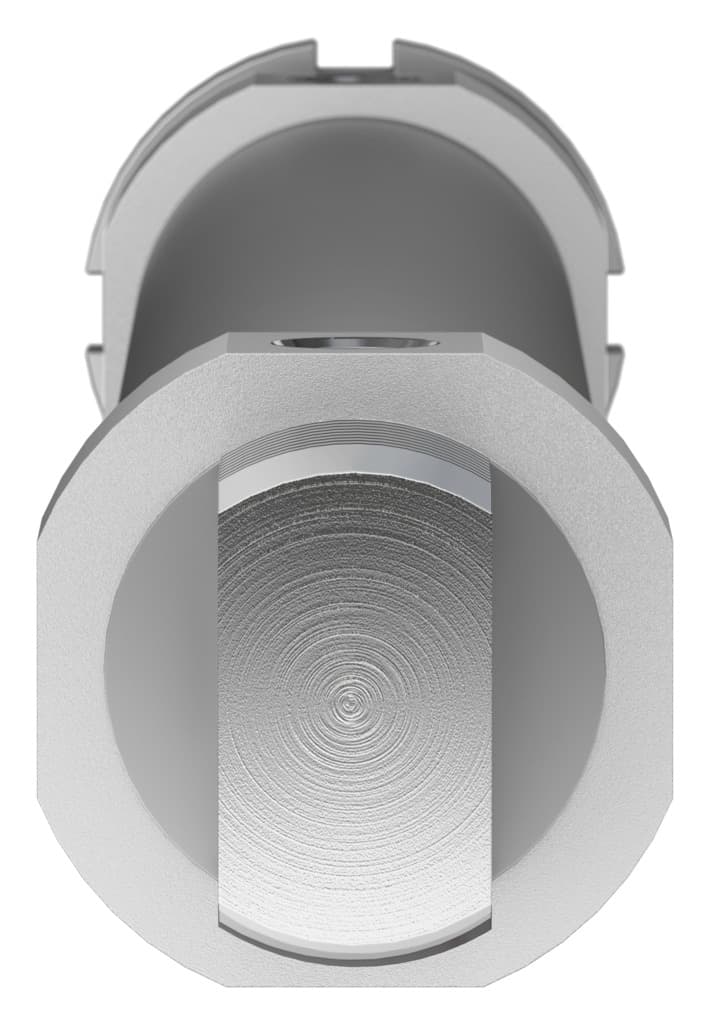

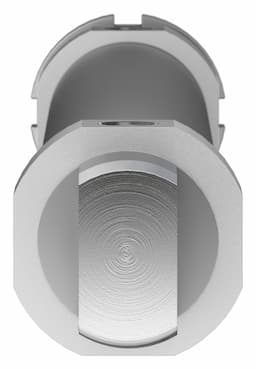

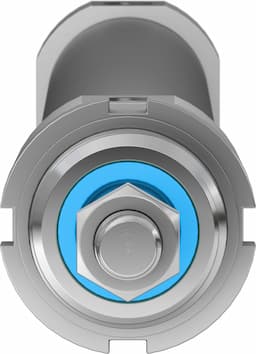

- 1The Festo DSNU-32-250-P-A pneumatic cylinder offers a 32mm bore and a 250mm stroke, making it suitable for a wide range of industrial applications requiring precise motion control.
- 2This cylinder features double-acting operation, allowing for both extension and retraction, which enhances its versatility in various automation tasks.
- 3The DSNU-32-250-P-A is designed with adjustable end-position cushioning, ensuring smooth and controlled movements even under changing load conditions.
- 4The cylinder is built with high-quality materials, including a high-alloy stainless steel cylinder barrel and a wrought aluminum alloy cover, ensuring durability and resistance to corrosion.
- 5This pneumatic cylinder is compliant with ISO6432 standards and supports operation with oil lubrication, making it a reliable choice for demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 482.5N |
Moving mass | 346g | Product weight | 758g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 195988 |
Specifications may be subject to change without notice
