Product Model

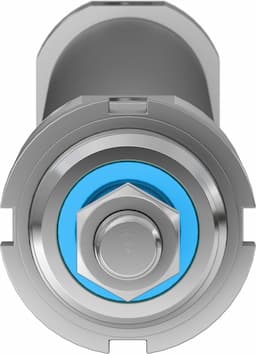

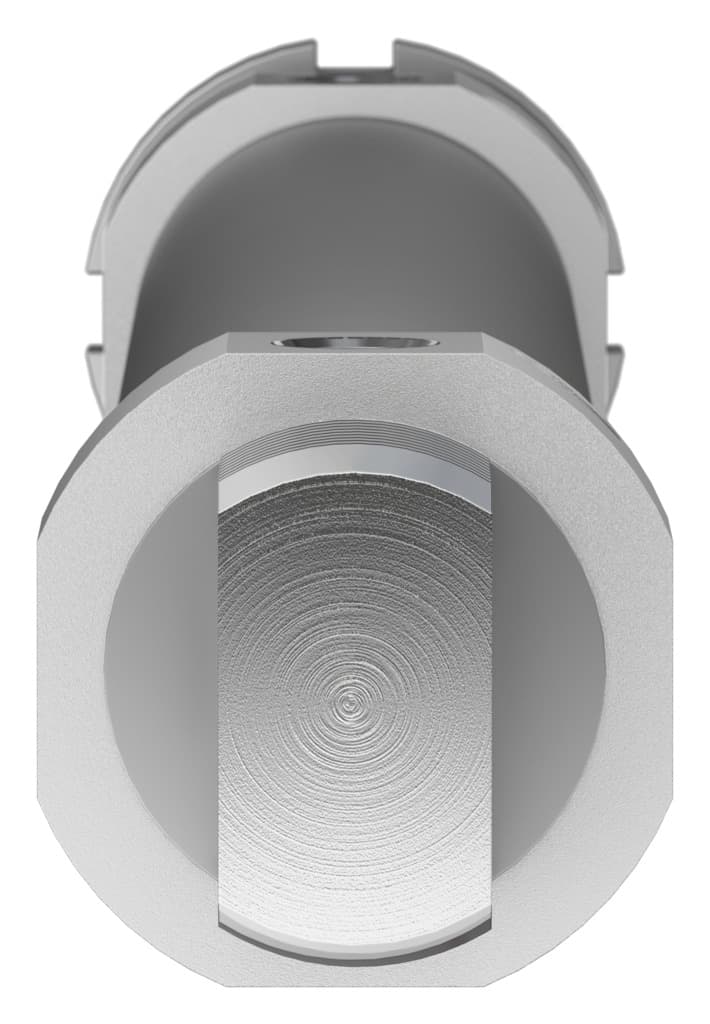

dsnu-32-250-ppv-a
Selling Points
- 1The DSNU-32-250-PPV-A round cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in various industrial applications.
- 2With a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, making it suitable for use in harsh environments.
- 3Equipped with proximity switch position detection, the DSNU-32-250-PPV-A cylinder provides accurate positioning and control, enhancing the reliability of your automation systems.
- 4This cylinder operates effectively within a wide pressure range of 1 to 10 bar, allowing it to be used in various industrial settings with different pressure requirements.
- 5Constructed from high-alloy stainless steel for the cylinder tube and high-alloy steel for the piston rod, this cylinder ensures durability and longevity in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Cushioning length | 14mm | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 482.5N | Moving mass | 346g |
Product weight | 758g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 196028 |
Specifications may be subject to change without notice
