Product Model

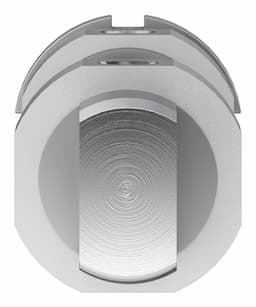

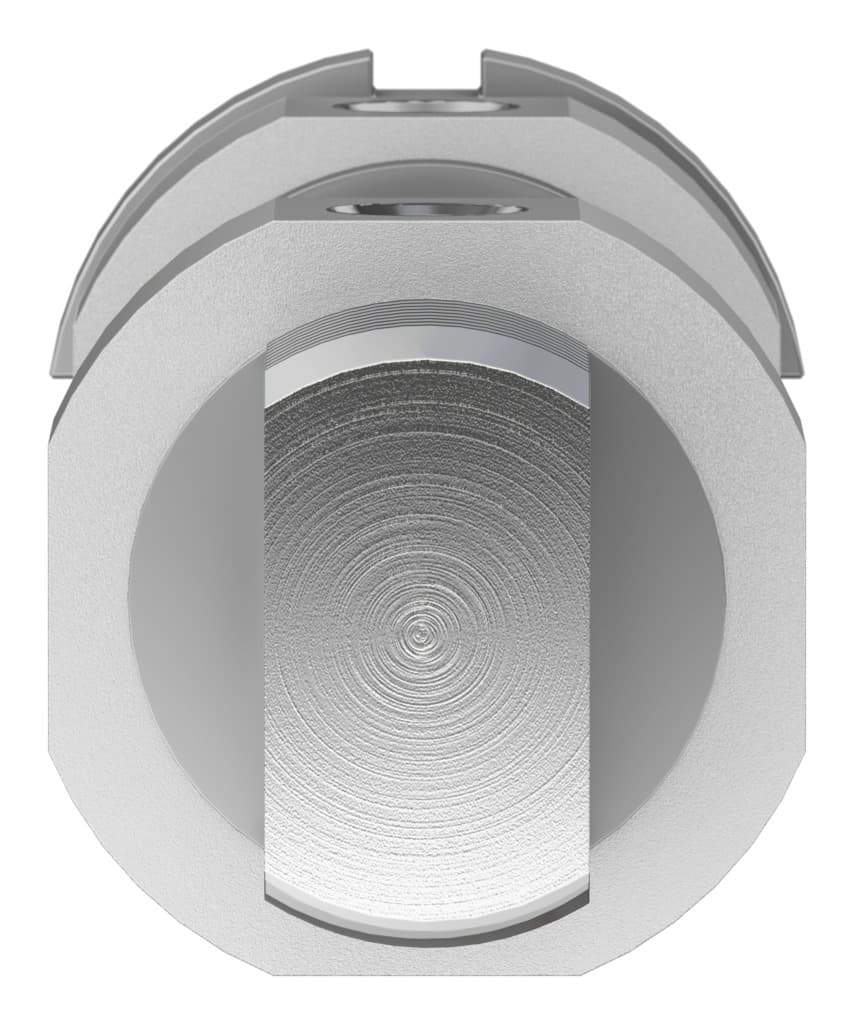

dsnu-32-40-p-a
Selling Points
- 1The Festo DSNU-32-40-P-A pneumatic cylinder features a 32 mm piston diameter and a stroke length of 40 mm, making it ideal for slow stroke movements and constant motion applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear on the components.
- 3The DSNU-32-40-P-A cylinder operates at pressures between 0.1 MPa and 1 MPa, supporting both double-acting modes, and is compatible with compressed air to ISO 8573-1:2010.
- 4Constructed with high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, this cylinder offers excellent corrosion resistance and durability.
- 5Designed for use in various industrial environments, the DSNU-32-40-P-A cylinder meets corrosion resistance class CRC 2 and is suitable for ambient temperatures ranging from -20°C to 80°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 482.5N |
Moving mass | 157g | Product weight | 433g |
Type of mounting | With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 195981 |
Specifications may be subject to change without notice
