Product Model

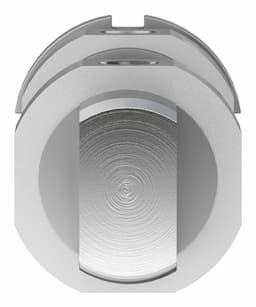

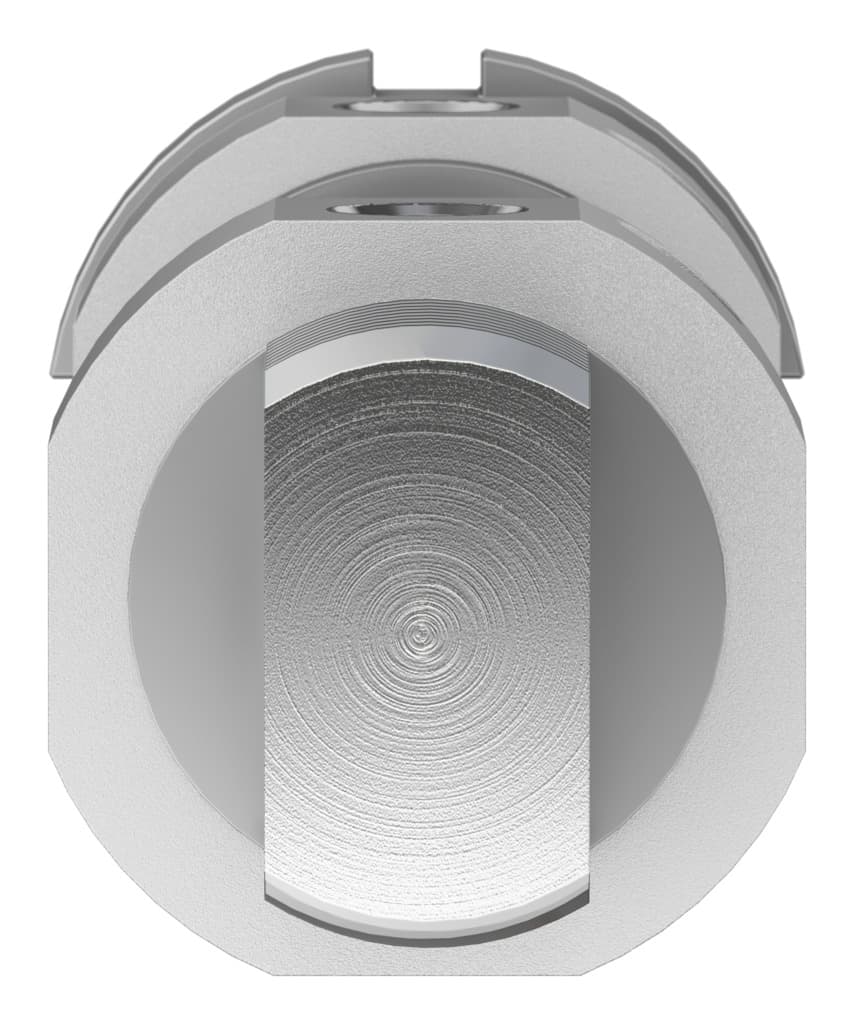

dsnu-32-40-ppv-a
Selling Points
- 1The Festo DSNU-32-40-PPV-A offers adjustable pneumatic dampening on both sides, ensuring smooth and controlled motion in various industrial applications.
- 2Constructed with high-alloy stainless steel and high-alloy steel, this cylinder provides exceptional durability and resistance to corrosion, making it suitable for demanding environments.
- 3Designed with a robust construction set up including a piston, piston rod, and cylinder tube, this cylinder ensures reliable operation and long-lasting performance.
- 4The DSNU-32-40-PPV-A can be installed in any position, offering flexibility in system design and integration.
- 5Operating with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder is compatible with standard pneumatic systems, enhancing its usability in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Cushioning length | 14mm | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 482.5N | Moving mass | 157g |
Product weight | 433g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 196021 |
Specifications may be subject to change without notice
