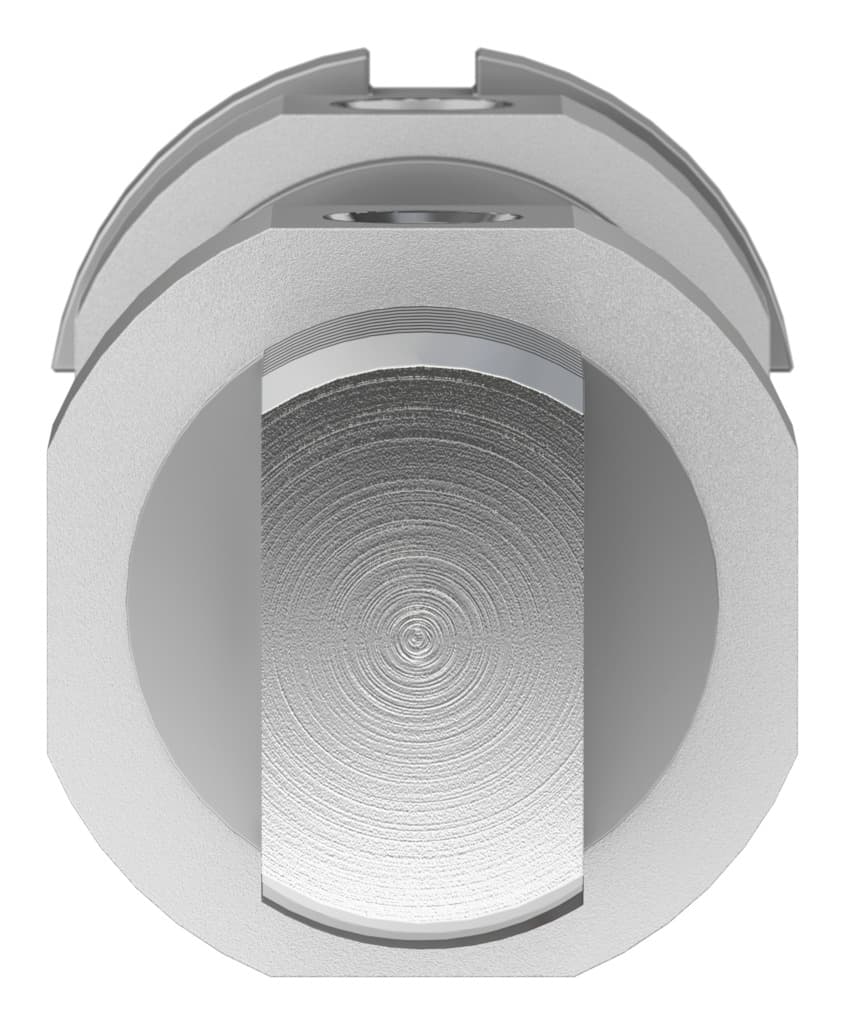

Festo DSNU-32-50-P-A Round Cylinder: High-Quality Pneumatic Solution

Selling Points

1The Festo DSNU-32-50-P-A round cylinder features a stroke of 50 mm and a piston diameter of 32 mm, making it versatile for various pneumatic applications.
2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear.
3The cylinder operates at pressures between 1 to 10 bar, making it suitable for a wide range of pneumatic systems.
4Constructed from high-alloy stainless steel and wrought aluminum alloy, the DSNU-32-50-P-A offers excellent corrosion resistance and durability.
5Ideal for double-acting operations, this cylinder is designed for precise position detection via proximity switch, enhancing its reliability and accuracy.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	50mm	Piston diameter	32 mm
Piston rod thread	M10x1.25	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	415N	Theoretical force at 6 bar, advancing	482.5N
Moving mass	166g	Product weight	448g
Type of mounting	With accessories	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	195982

Specifications may be subject to change without notice
