Product Model

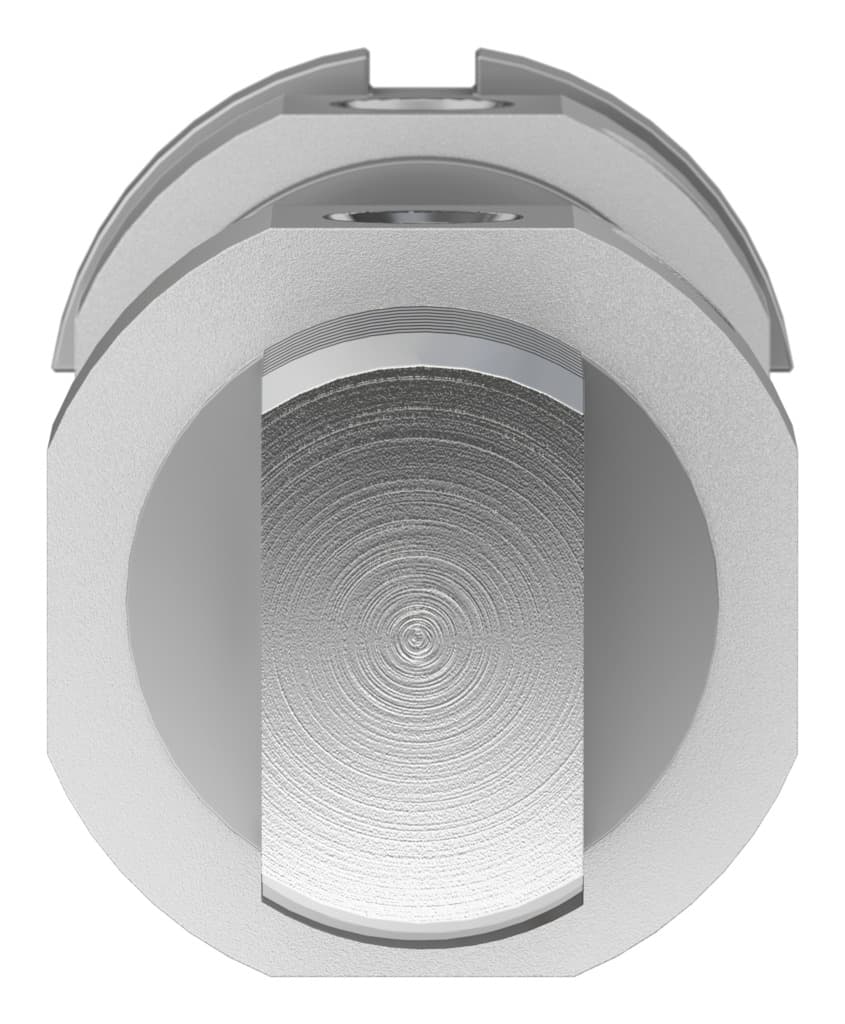

dsnu-32-50-ppv-a
Selling Points
- 1The DSNU-32-50-PPV-A round cylinder offers adjustable pneumatic cushioning at both ends, ensuring precise control and smooth operation.
- 2Designed for double-acting operation, this cylinder provides balanced forces in both the advance and return strokes, enhancing overall system performance.
- 3With various mounting options available, including the use of additional mounting components, the DSNU-32-50-PPV-A can be easily integrated into diverse applications.
- 4Equipped with proximity switch compatibility, this cylinder allows for precise position detection, making it suitable for applications requiring accurate positioning.
- 5Constructed from high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, the DSNU-32-50-PPV-A ensures durability and resistance to corrosion, meeting CRC 2 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Cushioning length | 14mm | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 482.5N | Moving mass | 166g |
Product weight | 448g | Type of mounting | With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 196022 |
Specifications may be subject to change without notice
