Product Model

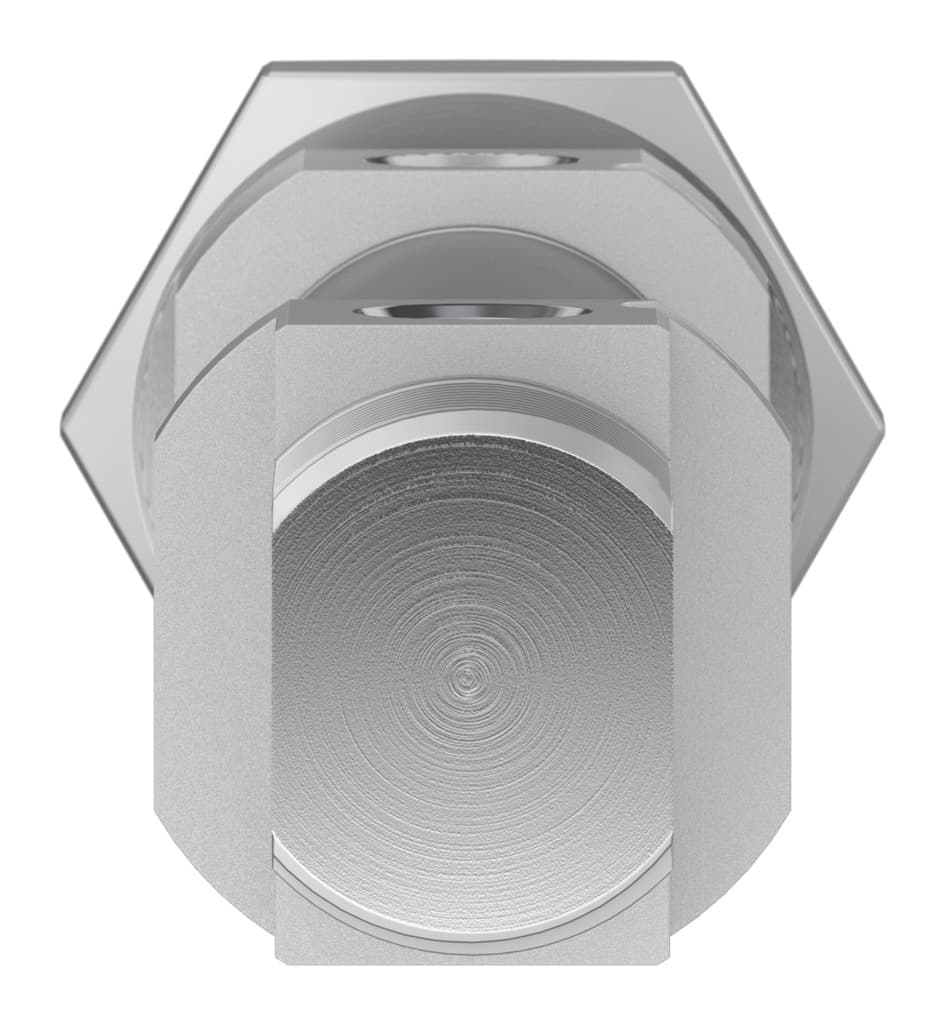

dsnu-3/4"-2"-ppv-a
Selling Points
- 1The Festo DSNU-3/4"-2"-PPV-A pneumatic cylinder offers adjustable air cushioning at both ends, ensuring smooth and controlled movements in various industrial applications.
- 2This cylinder features a corrosion resistance class 2 according to Festo standard 940 070, making it suitable for use in normal industrial environments with moderate corrosion resistance.
- 3With a stroke length of up to 2 inches, the DSNU-3/4"-2"-PPV-A cylinder provides versatile options for different automation needs, from precise positioning to heavy-duty tasks.
- 4The cylinder is designed with flexible cushioning rings at both ends (P) and adjustable air cushioning at both ends (PPV), enhancing its durability and performance.
- 5The Festo DSNU-3/4"-2"-PPV-A cylinder is part of Festo's extensive range of pneumatic components, ensuring compatibility and reliability in integrated automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50.8mm | Piston diameter | 3/4" |
Piston rod thread | 5/16-24 UNF-2A | Based on norm | ISO 6432 |
Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.19998J | Cushioning length | 17.018mm |
Theoretical force at 6 bar, retracting | 158.357N | Theoretical force at 6 bar, advancing | 188.605N |
Moving mass at 0?mm stroke | 43.999g | Additional moving mass per 10?mm stroke | 3.997g |
Basic weight with 0?mm stroke | 186.798g | Additional weight per 10?mm stroke | 7.201g |
Type of mounting | With accessories | Pneumatic connection | 1/8 NPT |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 546406 |
Specifications may be subject to change without notice
