Product Model

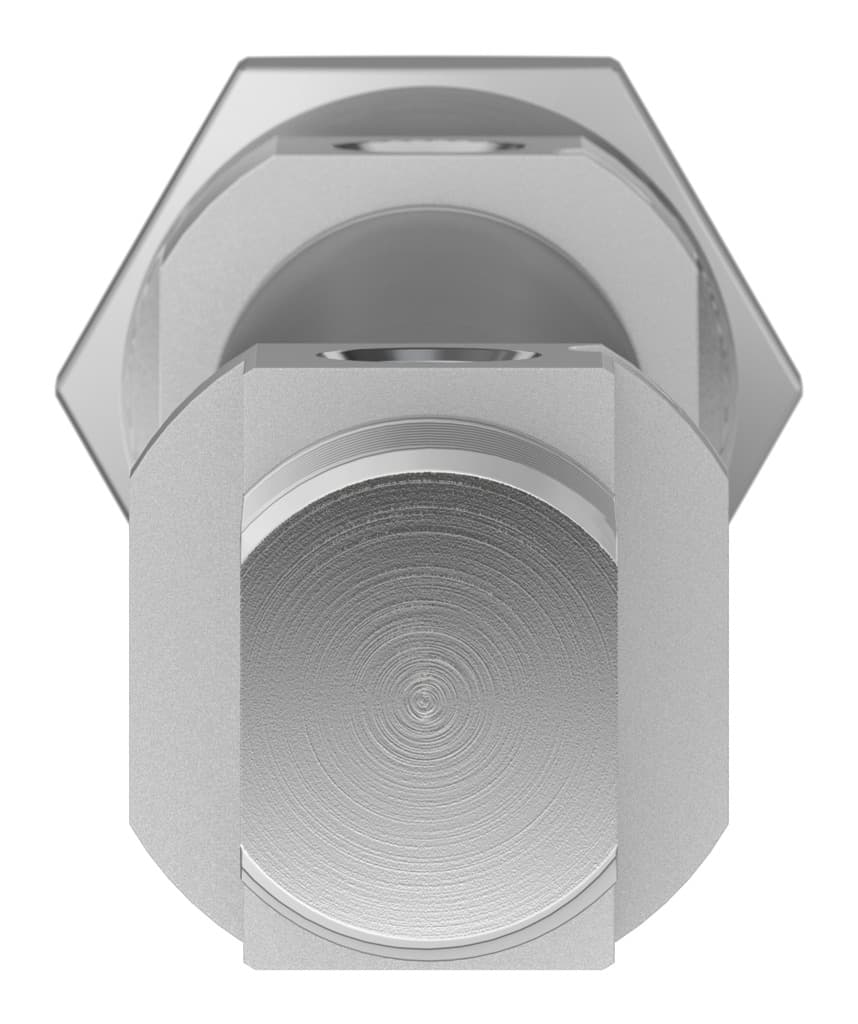

dsnu-3/4"- -ppv-a
Selling Points
- 1The Festo DSNU-3/4"-P-A pneumatic cylinder features a stroke length of 10.16 mm to 304.8 mm, providing versatile operation in various industrial settings.
- 2With a piston diameter of 3/4", this cylinder ensures robust performance and precise control, making it suitable for a wide range of applications.
- 3The cylinder is equipped with elastic cushioning rings/pads at both ends, enhancing its durability and reducing wear and tear.
- 4The DSNU-3/4"-P-A cylinder is designed to operate with compressed air as per ISO 8573-1:2010, ensuring reliable performance in various environments.
- 5The product is RoHS-compliant and made from high-alloy stainless steel, ensuring high corrosion resistance and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10.16mm 304.8mm | Piston diameter | 3/4" |
Piston rod thread | 5/16-24 UNF-2A | Based on norm | ISO 6432 |
Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.19998J | Cushioning length | 14.986mm |
Theoretical force at 6 bar, retracting | 140.831N | Theoretical force at 6 bar, advancing | 167.698N |
Moving mass at 0?mm stroke | 43.999g | Additional weight per 10?mm stroke | 3.997g |
Type of mounting | With accessories | Pneumatic connection | 1/8 NPT |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548536 |
Specifications may be subject to change without notice
