Product Model

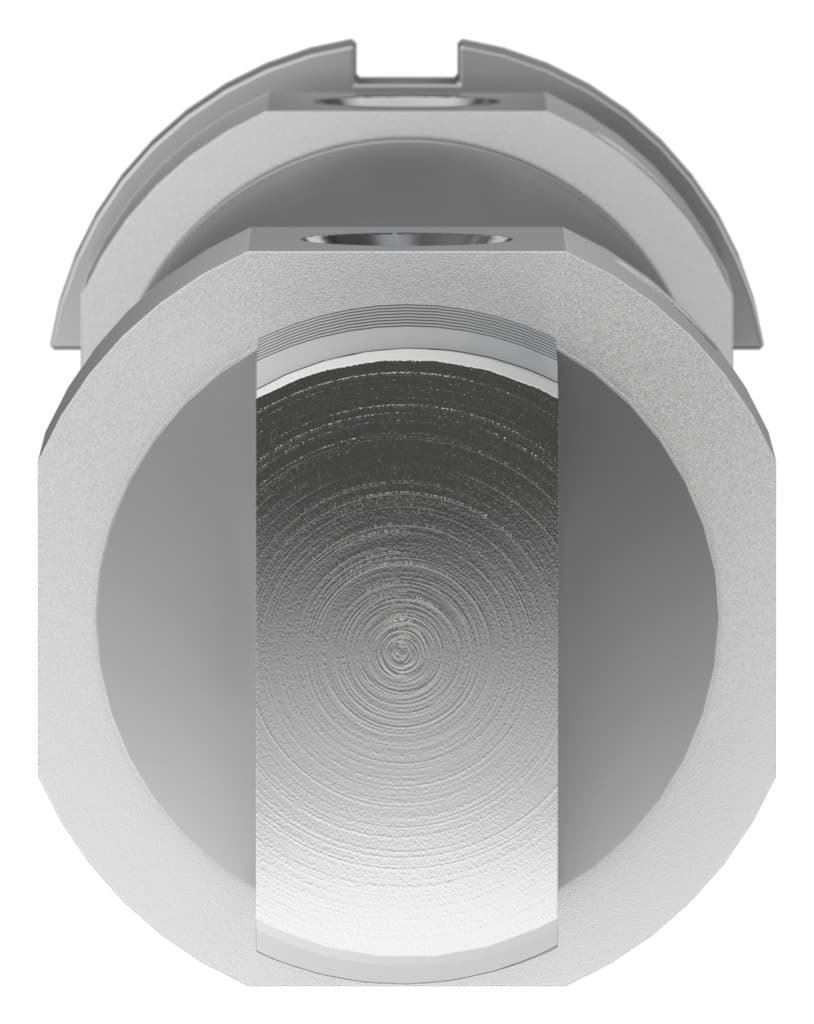

dsnu-40-100-ppv-a
Selling Points
- 1The Festo DSNU-40-100-PPV-A features a stroke of 100 mm and a piston diameter of 40 mm, making it versatile for various industrial applications.
- 2This pneumatic round cylinder includes adjustable pneumatic cushioning at both ends, ensuring precise control and durability.
- 3With a piston rod thread of M12x1.25, the DSNU-40-100-PPV-A offers easy integration into existing systems and supports a wide range of mounting options.
- 4Designed for double-acting operation, this cylinder operates effectively with compressed air to ISO 8573-1:2010 standards, ensuring reliable performance.
- 5Constructed from high-quality materials including wrought aluminum alloy for the cover, high-alloy steel for the piston rod, and high-alloy stainless steel for the cylinder barrel, the DSNU-40-100-PPV-A meets stringent corrosion resistance standards (CRC 2) and operates within an ambient temperature range of -20°C to 80°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 100mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 18mm |
Theoretical force at 6 bar, retracting | 633.3N | Theoretical force at 6 bar, advancing | 752.9N |
Moving mass | 390g | Product weight | 901g |
Type of mounting | With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196034 |
Specifications may be subject to change without notice
