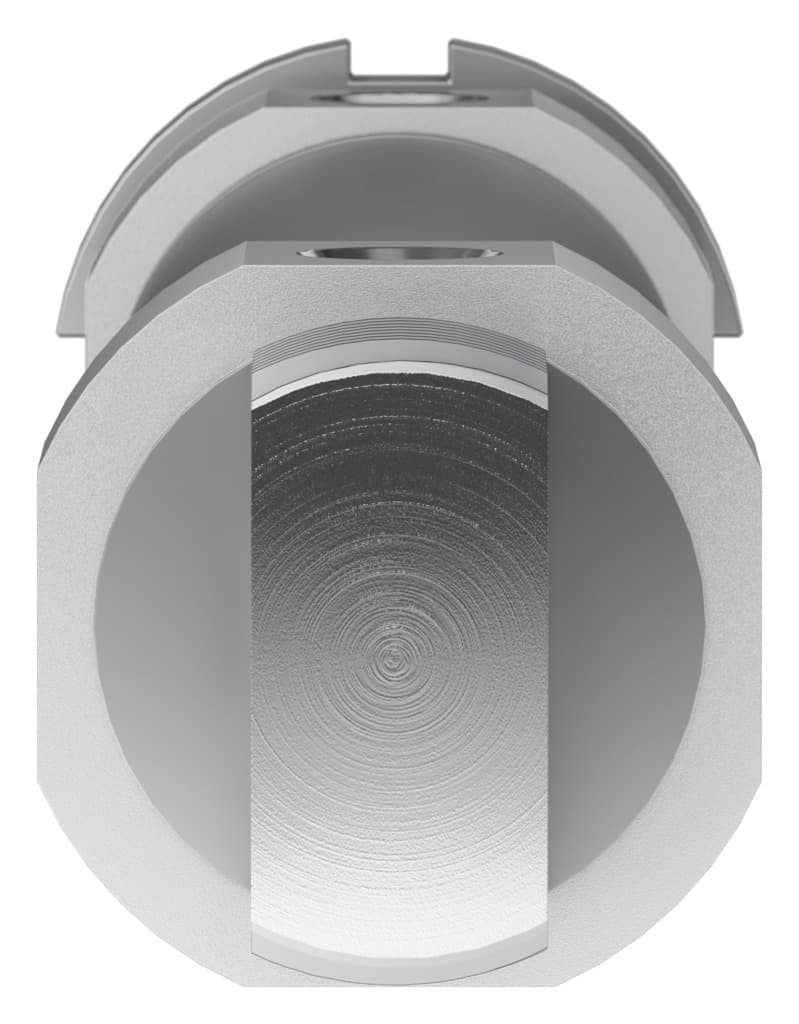

Festo DSNU-40-125-P-A Pneumatic Cylinder - High Precision and Durability

Selling Points

1The Festo DSNU-40-125-P-A pneumatic cylinder is built to last with elastic cushioning rings at both ends, ensuring smooth operation and extended lifespan.
2Suitable for a wide range of industrial applications, this cylinder offers a 125mm stroke and 40mm piston diameter, making it versatile for various tasks.
3Equipped with proximity sensors for precise position detection, this cylinder simplifies your automation processes.
4Designed for double-acting operation, the DSNU-40-125-P-A can handle both forward and return strokes efficiently.
5Meets ISO 8573-1:2010 standards for compressed air quality, ensuring reliable performance in your pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	125mm	Piston diameter	40 mm
Piston rod thread	M12x1.25	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	633.3N
Theoretical force at 6 bar, advancing	752.9N	Moving mass	430g
Product weight	961g	Type of mounting	With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	195995

Specifications may be subject to change without notice
