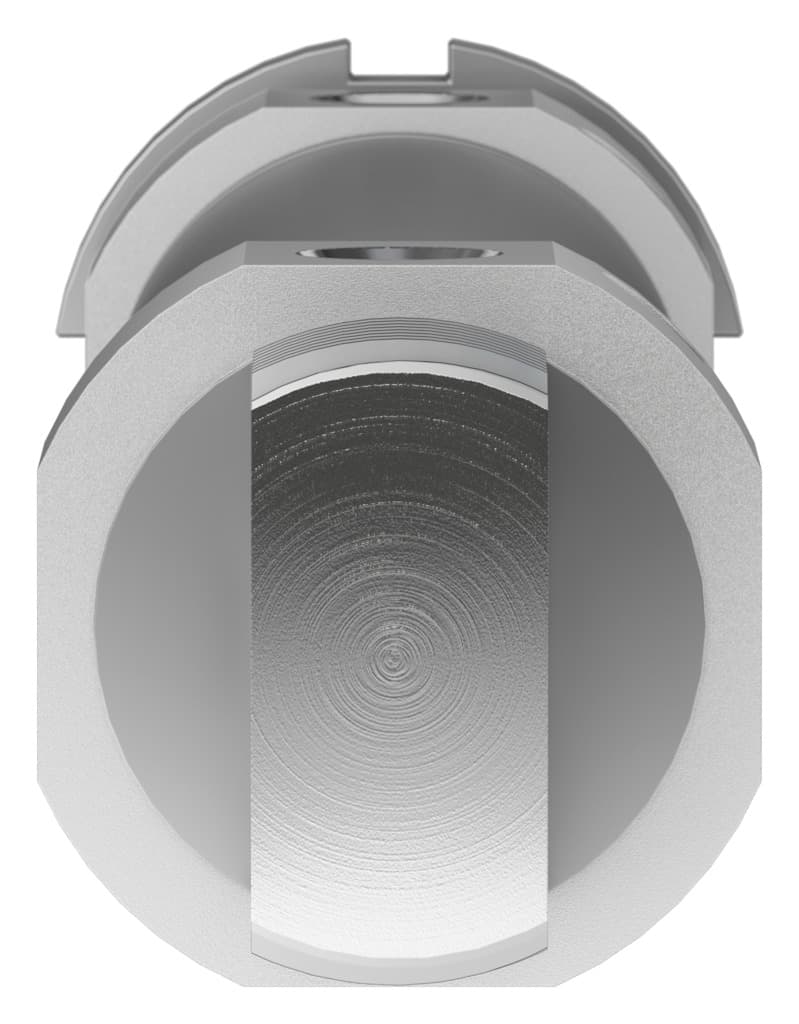

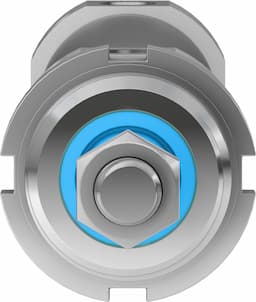

Festo DSNU-40-125-PPV-A Pneumatic Cylinder - High-Quality Automation Solutions

Selling Points

1The Festo DSNU-40-125-PPV-A pneumatic cylinder offers a round body design, ensuring smooth and efficient operation in various industrial automation applications.
2With a 40mm bore and 125mm stroke, this cylinder is suitable for slow stroke movements, providing consistent performance and reliability.
3The cylinder features a pneumatic cushion, which enhances its durability and reduces wear and tear, ensuring a longer service life.
4The DSNU-40-125-PPV-A cylinder is designed with position sensing capabilities, allowing for precise control and monitoring of its movements.
5Festo's commitment to quality is evident in the cylinder's corrosion-resistant materials and construction, ensuring it can withstand harsh industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	125mm	Piston diameter	40 mm
Piston rod thread	M12x1.25	Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991235
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Cushioning length	18mm
Theoretical force at 6 bar, retracting	633.3N	Theoretical force at 6 bar, advancing	752.9N
Moving mass	430g	Product weight	961g
Type of mounting	With accessories	Pneumatic connection	G1/4
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	196035

Specifications may be subject to change without notice
