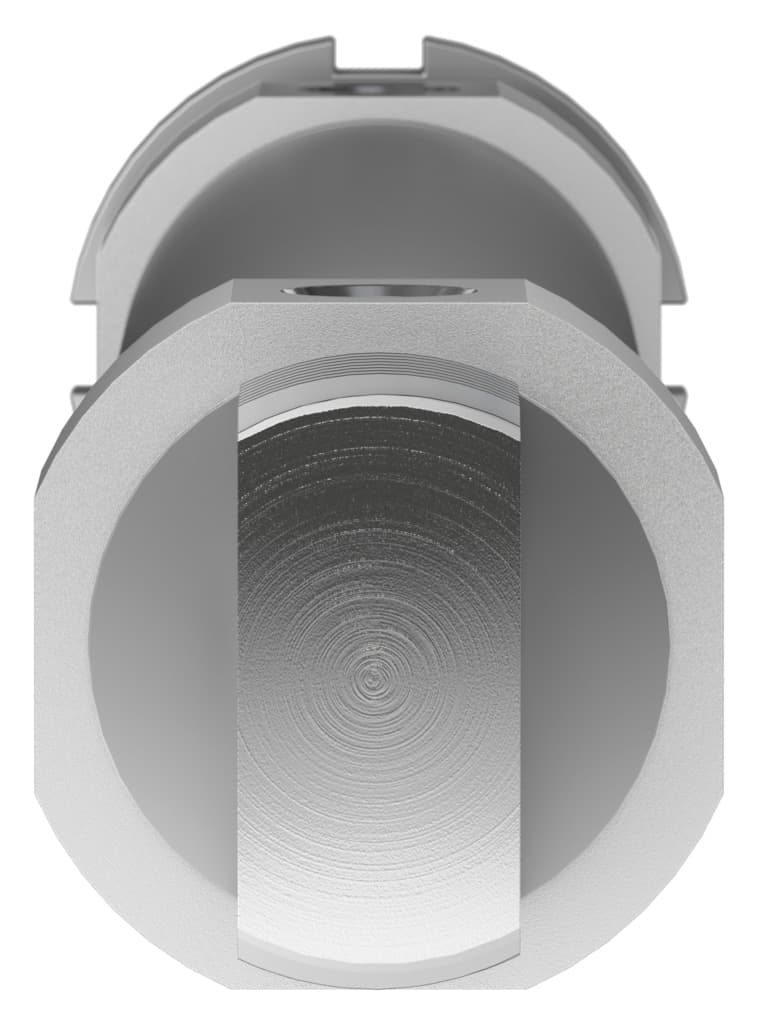

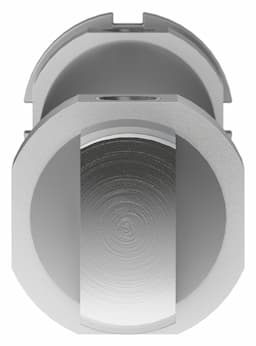

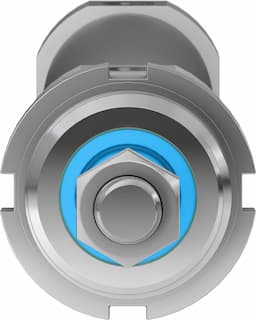

Festo DSNU-40-200-P-A Round Cylinder: High-Quality Pneumatic Solution

Selling Points

1The Festo DSNU-40-200-P-A round cylinder offers a 200mm stroke length, making it suitable for various industrial automation applications that require significant movement.
2With a piston diameter of 40mm, this cylinder provides robust performance and reliability in demanding environments.
3Equipped with elastic cushioning rings at both ends, the DSNU-40-200-P-A ensures smooth operation and reduces wear and tear on the cylinder.
4The cylinder operates at pressures between 0.1 MPa and 1 MPa (1 bar to 10 bar), making it versatile for different pneumatic system configurations.
5Designed for double-acting operation, the DSNU-40-200-P-A can handle both extension and retraction strokes efficiently, enhancing overall system performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	200mm	Piston diameter	40 mm
Piston rod thread	M12x1.25	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	633.3N
Theoretical force at 6 bar, advancing	752.9N	Moving mass	550g
Product weight	1141g	Type of mounting	With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	195997

Specifications may be subject to change without notice
