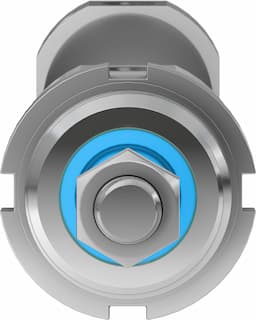

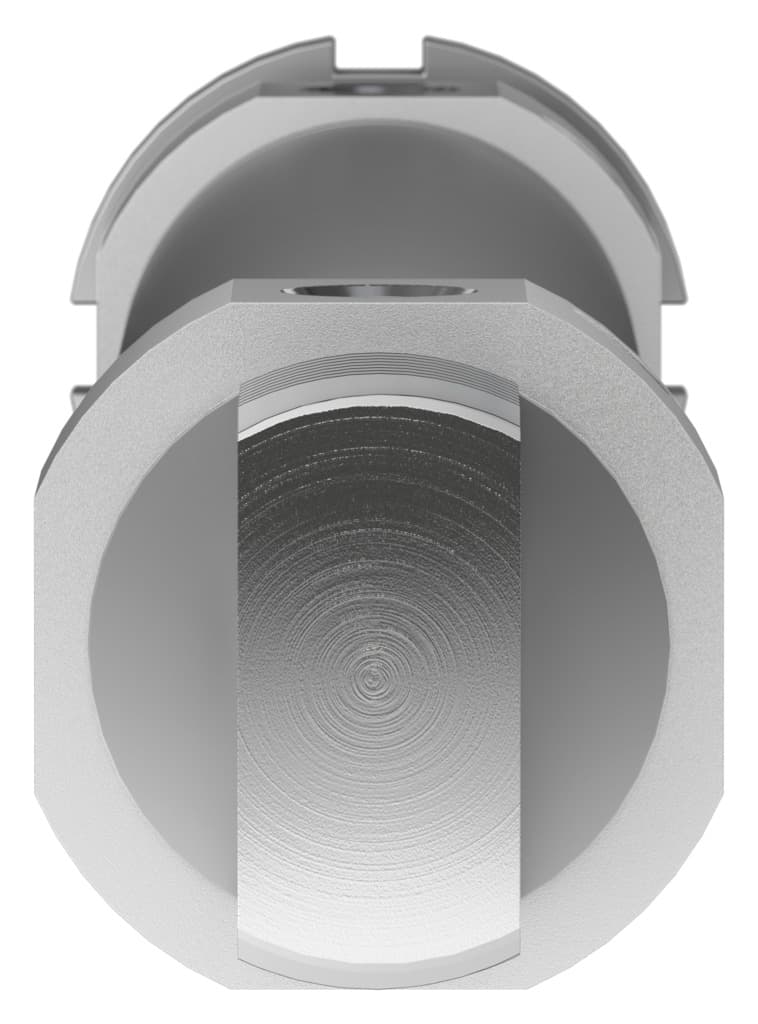

Product Model
dsnu-40-200-ppv-a
Selling Points
- 1Stroke Length and Precision - The Festo DSNU-40-200-PPV-A round cylinder offers a stroke length of 200 mm, ensuring precise and reliable operation in various applications.
- 2Adjustable Pneumatic Cushioning - This cylinder features adjustable pneumatic cushioning at both ends, providing customizable damping for optimal performance.
- 3Robust Construction - Made from high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, this cylinder ensures durability and resistance to corrosion.
- 4Operating Pressure Range - The DSNU-40-200-PPV-A operates within a pressure range of 1 to 10 bar, making it versatile for various industrial applications.
- 5Easy Installation and Position Detection - With an optional mounting position and position detection via proximity switch, installation and integration are straightforward and efficient.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 200mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 18mm |
Theoretical force at 6 bar, retracting | 633.3N | Theoretical force at 6 bar, advancing | 752.9N |
Moving mass | 550g | Product weight | 1141g |
Type of mounting | With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196037 |
Specifications may be subject to change without notice
