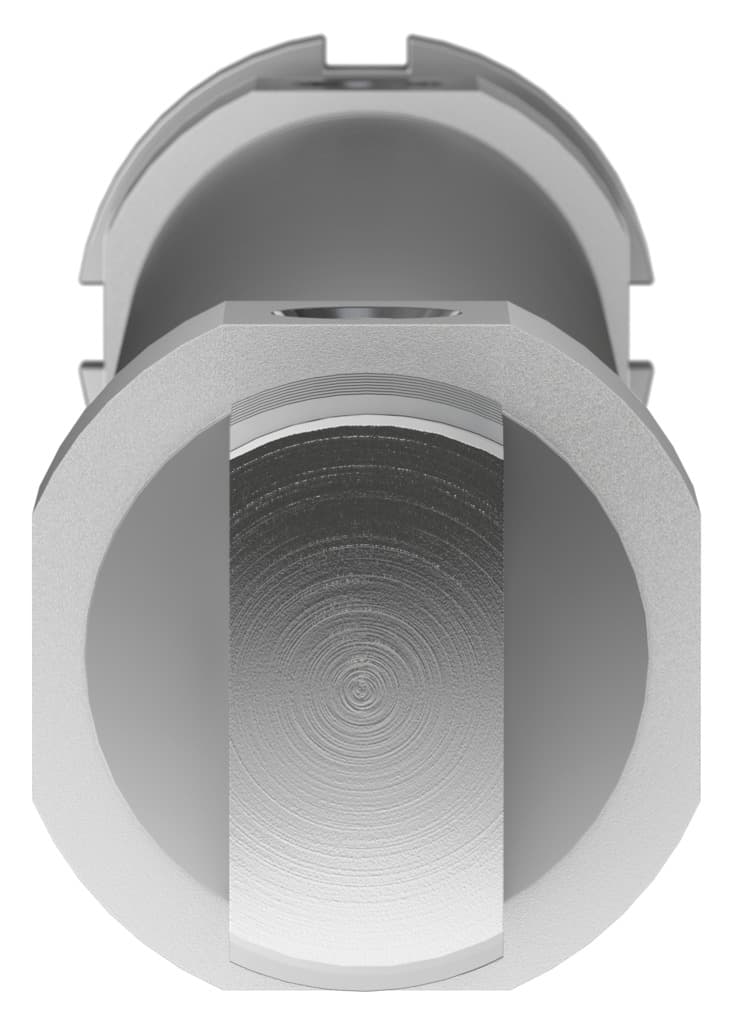

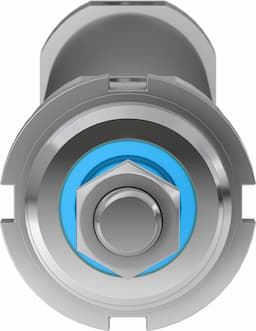

Festo DSNU-40-250-P-A Round Cylinder - High-Quality Pneumatic Solution

Selling Points

1The Festo DSNU-40-250-P-A round cylinder is designed for slow stroke movements, ensuring stick-slip-free operation over the full stroke length.
2Equipped with elastic silencer rings and double-sided plates for effective dampening, reducing noise and vibration.
3Features position detection capabilities, making it suitable for applications requiring precise control and monitoring.
4Constructed with high-alloyed stainless steel for the cylinder tube and high-alloyed steel for the piston rod, ensuring durability and corrosion resistance.
5Compatible with compressed air to ISO 8573-1:2010 standards, allowing for reliable operation in various industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	250mm	Piston diameter	40 mm
Piston rod thread	M12x1.25	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	633.3N
Theoretical force at 6 bar, advancing	752.9N	Moving mass	630g
Product weight	1261g	Type of mounting	With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	195998

Specifications may be subject to change without notice
