Product Model

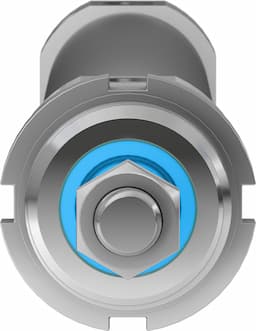

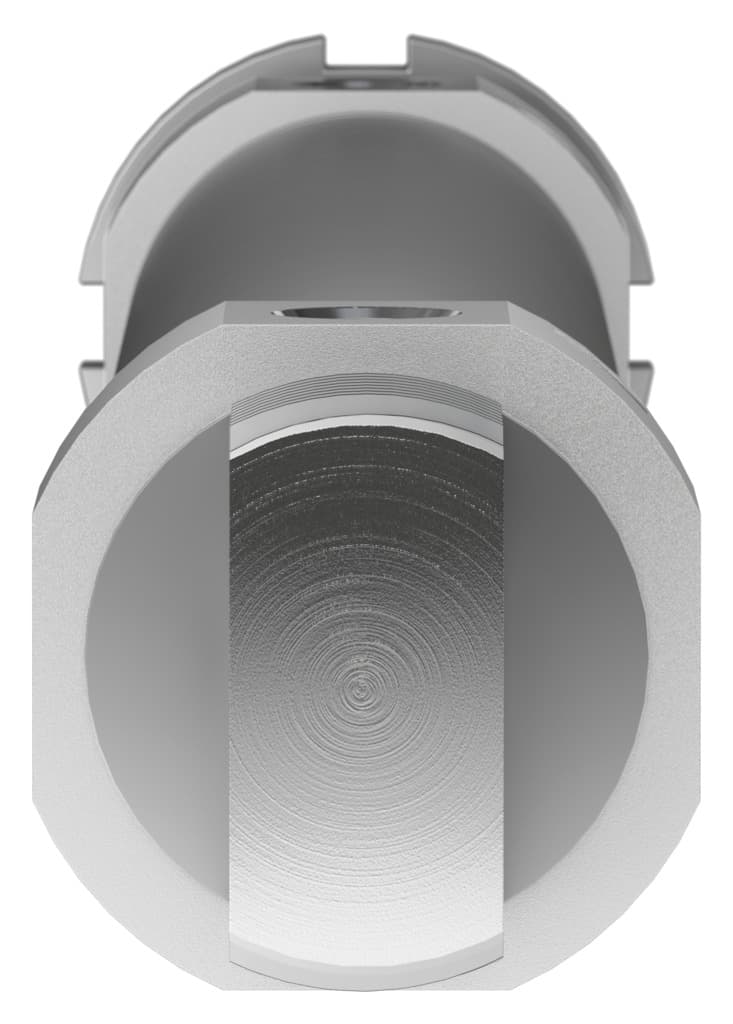

dsnu-40-250-ppv-a
Selling Points
- 1The DSNU-40-250-PPV-A round cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled motion in various industrial applications.
- 2Designed for double-acting operation, this cylinder can move in both directions, providing flexibility and efficiency in your automation processes.
- 3Constructed from high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, ensuring durability and resistance to corrosion.
- 4Compatible with operating pressures from 0.1 MPa to 1 MPa (1 bar to 10 bar), making it suitable for a variety of industrial environments.
- 5With a clear design and proximity sensor compatibility, the DSNU-40-250-PPV-A cylinder simplifies installation and maintenance processes, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 18mm |
Theoretical force at 6 bar, retracting | 633.3N | Theoretical force at 6 bar, advancing | 752.9N |
Moving mass | 630g | Product weight | 1261g |
Type of mounting | With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196038 |
Specifications may be subject to change without notice
