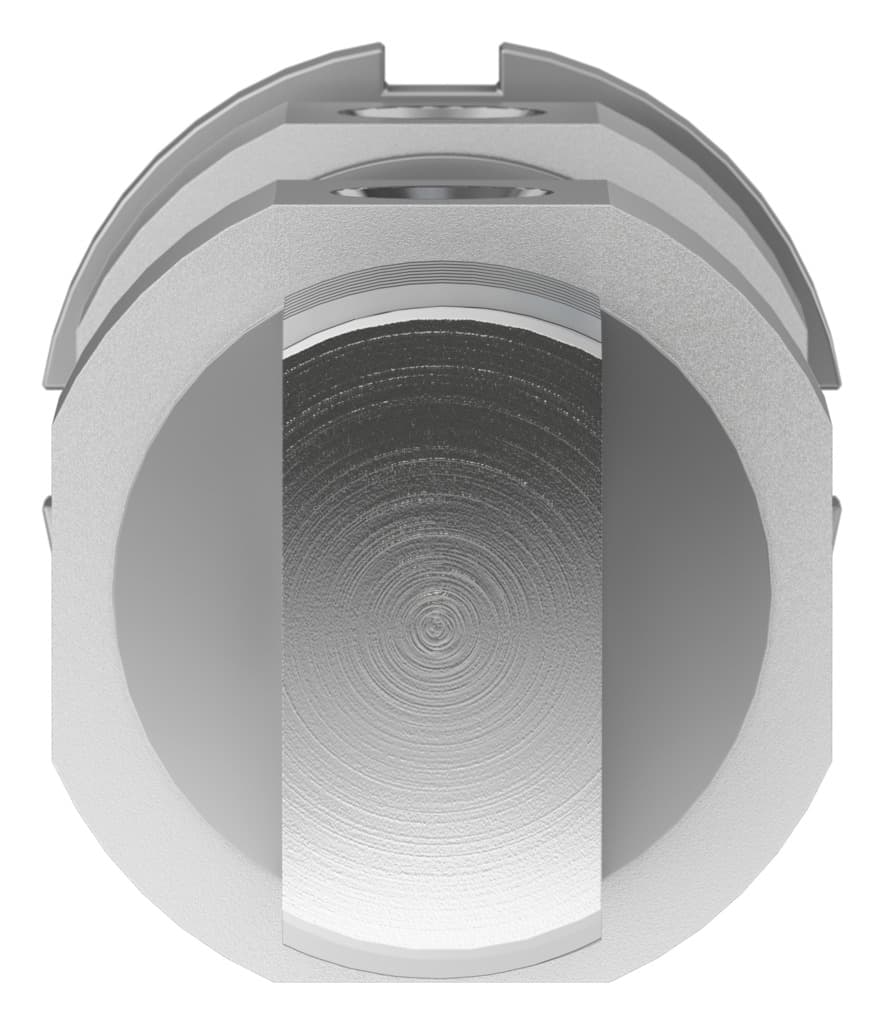

Festo DSNU-40-25-P-A Round Cylinder - High-Quality Pneumatic Solution

Selling Points

1The Festo DSNU-40-25-P-A round cylinder is designed to meet ISO 6432 standards, ensuring high precision and reliability in industrial automation applications.
2With a 40mm piston diameter and 25mm stroke, this cylinder offers a robust and efficient solution for various pneumatic tasks.
3The cylinder features elastic cushioning rings/plates at both ends, providing smooth operation and reducing wear and tear.
4It supports double-acting mode of operation, allowing for both extension and retraction strokes with compressed air in accordance with ISO 8573-1:2010 [7:4:4].
5The Festo DSNU-40-25-P-A cylinder is built with high-alloy steel material for the piston rod and high-alloy stainless steel for the cylinder barrel, ensuring excellent corrosion resistance and durability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	40 mm
Piston rod thread	M12x1.25	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	633.3N
Theoretical force at 6 bar, advancing	752.9N	Moving mass	270g
Product weight	721g	Type of mounting	With accessories
Pneumatic connection	G1/4	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	195990

Specifications may be subject to change without notice
