Product Model

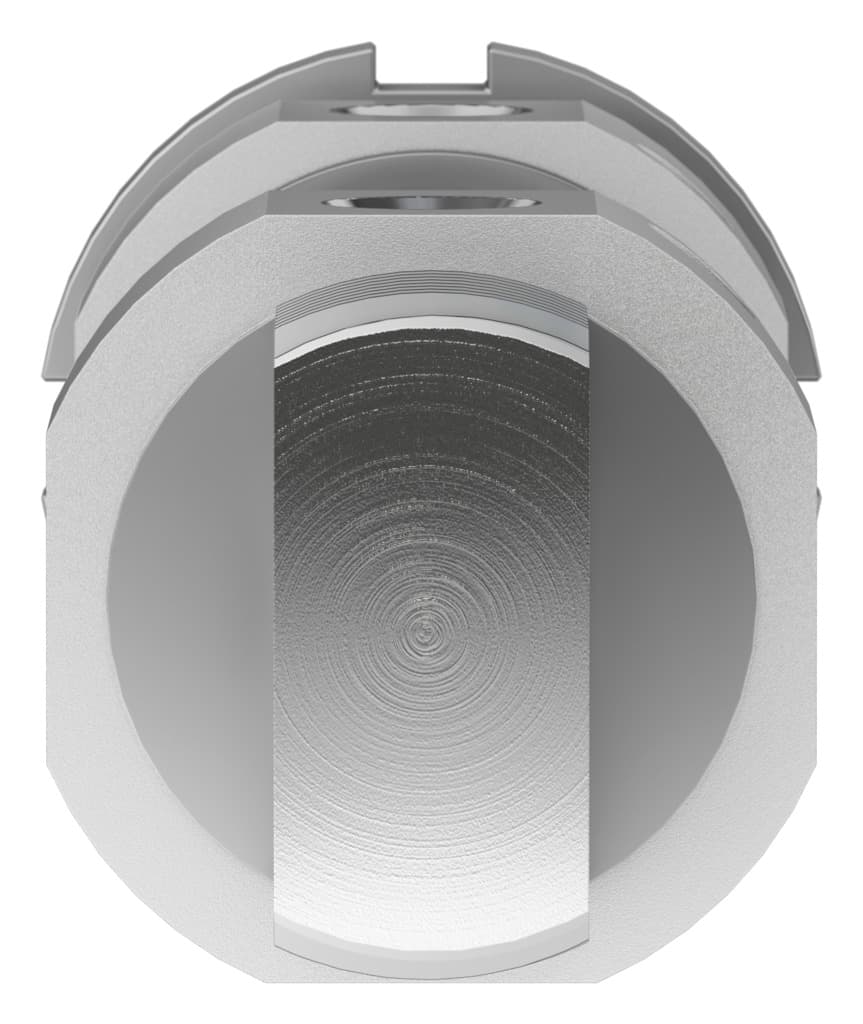

dsnu-40-40-ppv-a
Selling Points
- 1The DSNU-40-40-PPV-A round cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled motion in your applications.
- 2Made from high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, this round cylinder provides durability and resistance to corrosion.
- 3Equipped with proximity switches for position detection, the DSNU-40-40-PPV-A ensures accurate positioning in your pneumatic systems.
- 4Designed to operate within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), this round cylinder is versatile and suitable for various industrial applications.
- 5Available with various mounting options, including accessories, the DSNU-40-40-PPV-A can be easily integrated into your existing pneumatic setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 18mm |
Theoretical force at 6 bar, retracting | 633.3N | Theoretical force at 6 bar, advancing | 752.9N |
Moving mass | 294g | Product weight | 757g |
Type of mounting | With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196031 |
Specifications may be subject to change without notice
