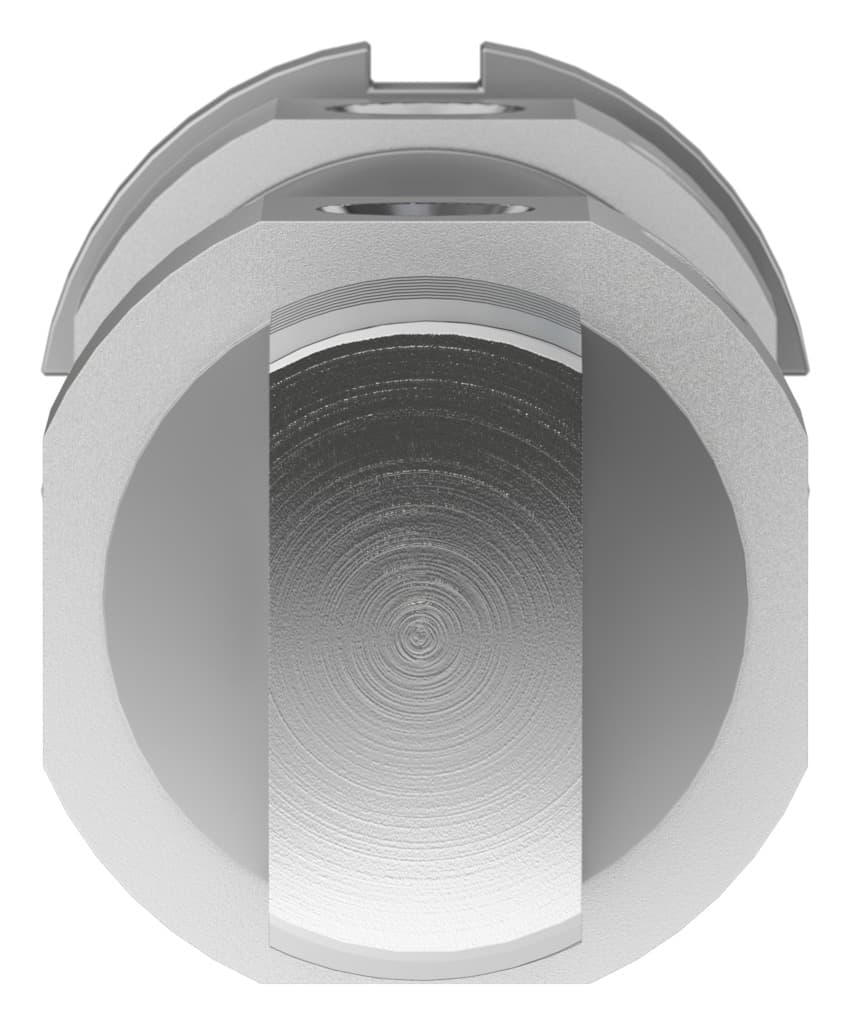

Festo DSNU-40-50-PPV-A Pneumatic Cylinder Specifications

Selling Points

1The Festo DSNU-40-50-PPV-A pneumatic cylinder features a stroke length of 50 mm, making it versatile for a wide range of industrial applications.
2With a piston diameter of 40 mm and a piston rod thread of M12x1.25, this cylinder offers precise and reliable operation.
3Equipped with pneumatic cushioning that is adjustable at both ends, the DSNU-40-50-PPV-A ensures smooth and controlled movements.
4Operating within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), this cylinder is designed to handle various operational demands.
5Constructed from high-quality materials including wrought aluminum alloy for the cover and high-alloy steel for the piston rod, ensuring durability and resistance to corrosion.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	50mm	Piston diameter	40 mm
Piston rod thread	M12x1.25	Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991235
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Cushioning length	18mm
Theoretical force at 6 bar, retracting	633.3N	Theoretical force at 6 bar, advancing	752.9N
Moving mass	310g	Product weight	781g
Type of mounting	With accessories	Pneumatic connection	G1/4
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	196032

Specifications may be subject to change without notice
