Product Model

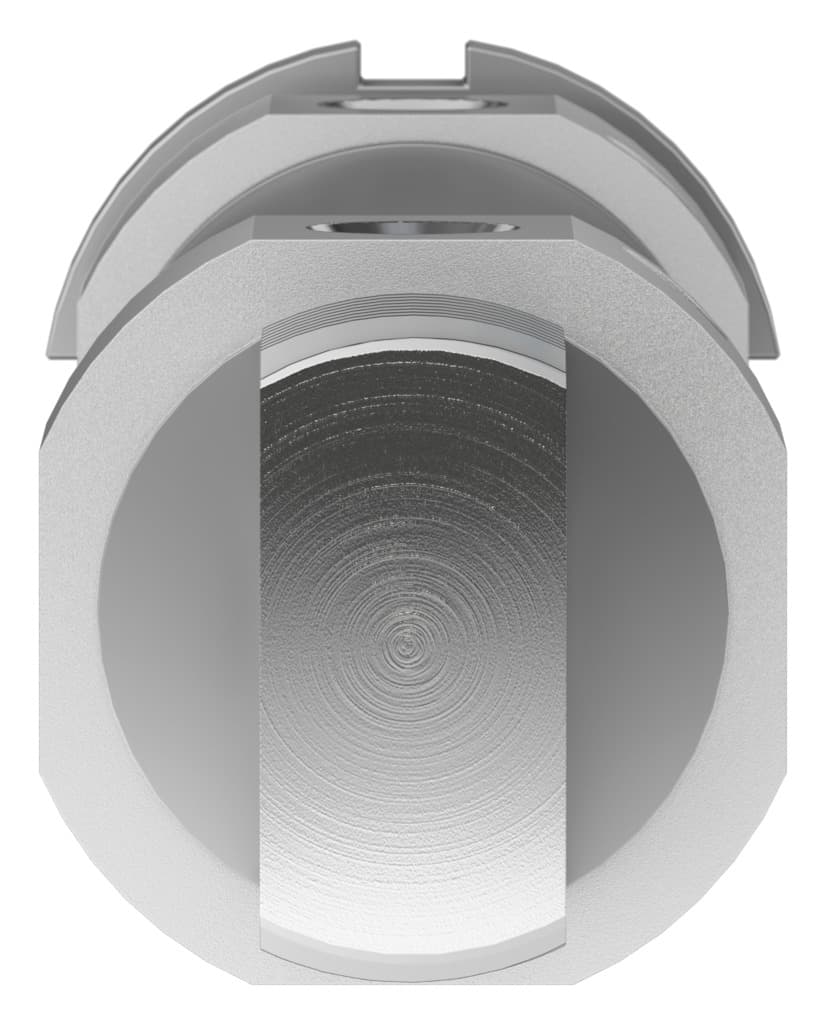

dsnu-40-80-ppv-a
Selling Points
- 1The DSNU-40-80-PPV-A offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in various applications.
- 2Made from high-alloy steel for the piston rod and high-alloy stainless steel for the cylinder barrel, this round cylinder provides durability and resistance to corrosion.
- 3Equipped with proximity switch detection, the DSNU-40-80-PPV-A allows for precise position sensing, making it suitable for applications requiring accurate movement control.
- 4Available with various mounting options, including lateral and axial air connections, this cylinder can be installed in a wide range of configurations to meet specific application needs.
- 5Designed for double-acting operation with compressed air to ISO 8573-1:2010 standards, the DSNU-40-80-PPV-A supports lubricated operation and can handle operating pressures from 1 to 10 bar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 18mm |
Theoretical force at 6 bar, retracting | 633.3N | Theoretical force at 6 bar, advancing | 752.9N |
Moving mass | 358g | Product weight | 853g |
Type of mounting | With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196033 |
Specifications may be subject to change without notice
