Product Model

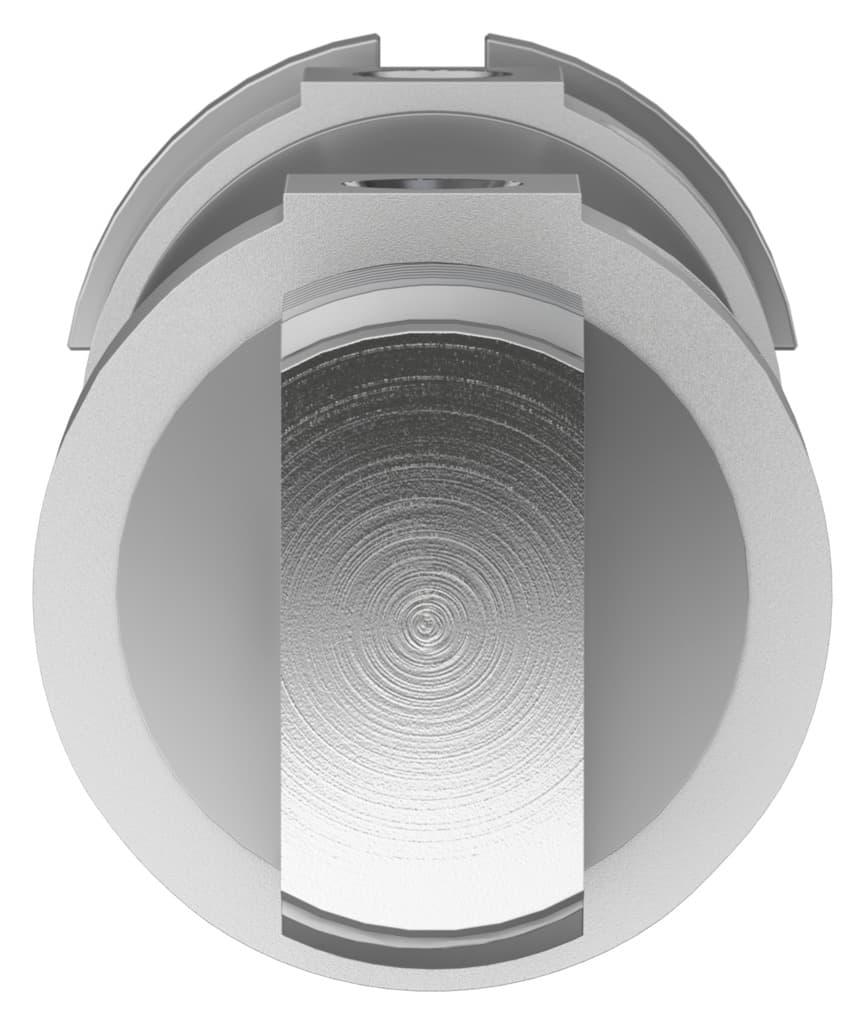

dsnu-50-100-ppv-a
Selling Points
- 1The DSNU-50-100-PPV-A round cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in your industrial applications.
- 2With a corrosion resistance class of 2, this cylinder is designed to withstand moderate corrosion stress, making it suitable for use in various industrial environments.
- 3The cylinder can be mounted in any position, providing flexibility in system design and integration.
- 4Ideal for slow stroke movements, this cylinder ensures constant, stick-slip-free speed over the full stroke, making it suitable for applications requiring precise control.
- 5The DSNU-50-100-PPV-A operates with compressed air to ISO 8573-1:2010 [7:4:4], allowing for efficient and reliable operation in a variety of pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 100mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 20mm |
Theoretical force at 6 bar, retracting | 989.6N | Theoretical force at 6 bar, advancing | 1178.1N |
Moving mass | 663g | Product weight | 1487g |
Type of mounting | With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196044 |
Specifications may be subject to change without notice
