Product Model

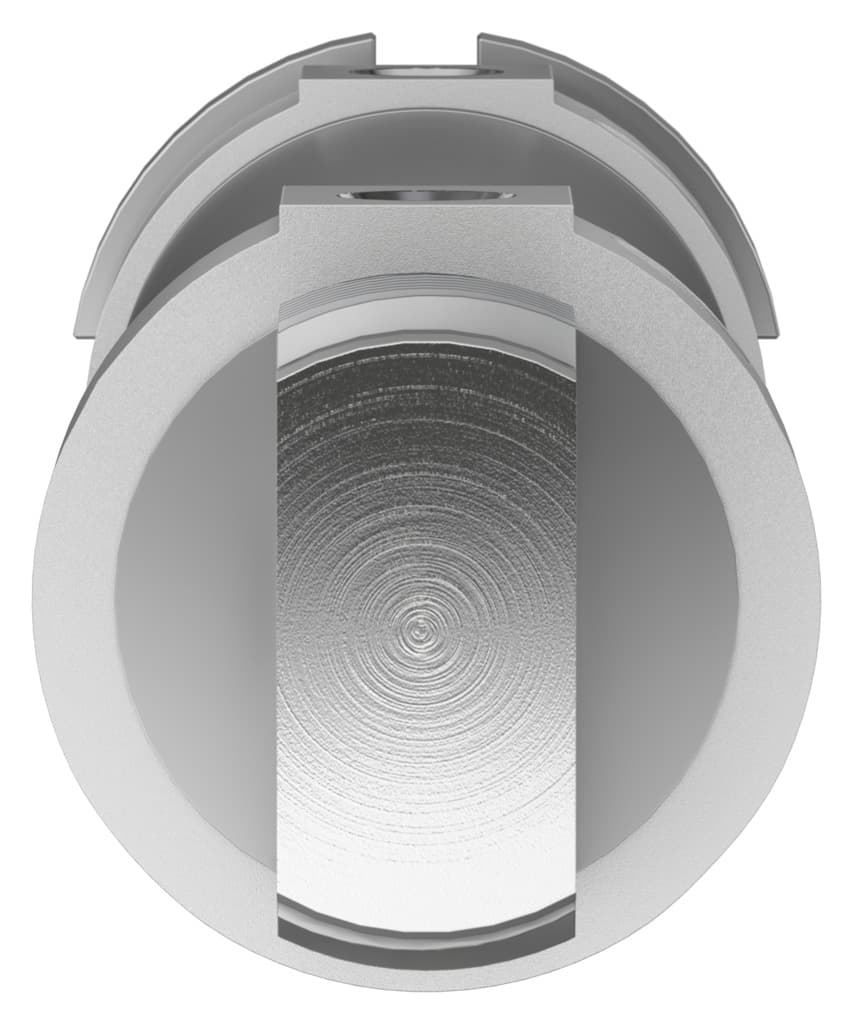

dsnu-50-125-ppv-a
Selling Points
- 1The Festo DSNU-50-125-PPV-A round cylinder offers a stroke of 125 mm and a piston diameter of 50 mm, making it ideal for a wide range of industrial applications.
- 2Equipped with adjustable pneumatic cushioning at both ends, this cylinder ensures smooth and controlled motion, reducing wear and tear on the system.
- 3Constructed from high-alloy steel for the piston rod and high-alloy stainless steel for the cylinder barrel, this cylinder provides exceptional durability and corrosion resistance.
- 4With a mounting position that is optional, the DSNU-50-125-PPV-A can be easily integrated into various systems, offering flexibility in design and installation.
- 5Operating within a pressure range of 1 to 10 bar, this cylinder is suitable for double-acting operations and can be used with compressed air to ISO 8573-1:2010 [7:4:4], ensuring reliable performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 125mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 20mm |
Theoretical force at 6 bar, retracting | 989.6N | Theoretical force at 6 bar, advancing | 1178.1N |
Moving mass | 726g | Product weight | 1587g |
Type of mounting | With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196045 |
Specifications may be subject to change without notice
