Product Model
dsnu-50-200-p-a
Selling Points

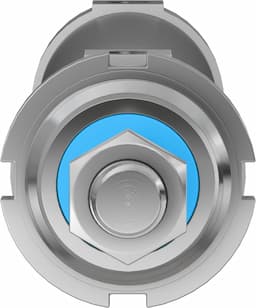

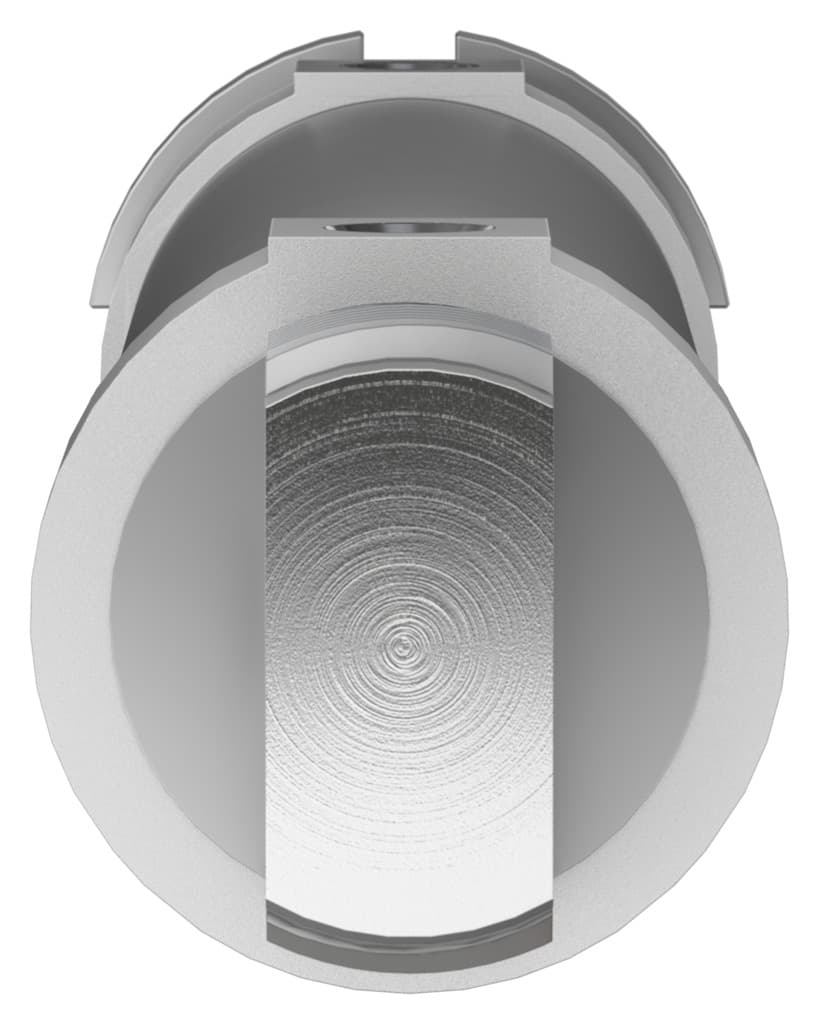

- 1The Festo DSNU-50-200-P-A round cylinder features a stroke of 200 mm and a piston diameter of 50 mm, making it suitable for a wide range of industrial applications.
- 2This cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements, even in demanding environments.
- 3With a piston rod thread of M16x1.5, the DSNU-50-200-P-A provides a secure and reliable connection, enhancing overall system stability.
- 4The cylinder operates within a pressure range of 1 to 10 bar, making it versatile for various industrial processes and conditions.
- 5Constructed from high-alloyed steel for the piston rod and high-alloyed stainless steel for the cylinder tube, this product ensures high corrosion resistance and durability, meeting CRC 2 standards for moderate corrosion stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 200mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 989.6N |
Theoretical force at 6 bar, advancing | 1178.1N | Moving mass | 913g |
Product weight | 1887g | Type of mounting | With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 196007 |
Specifications may be subject to change without notice
