Product Model
dsnu-50-25-p-a
Selling Points

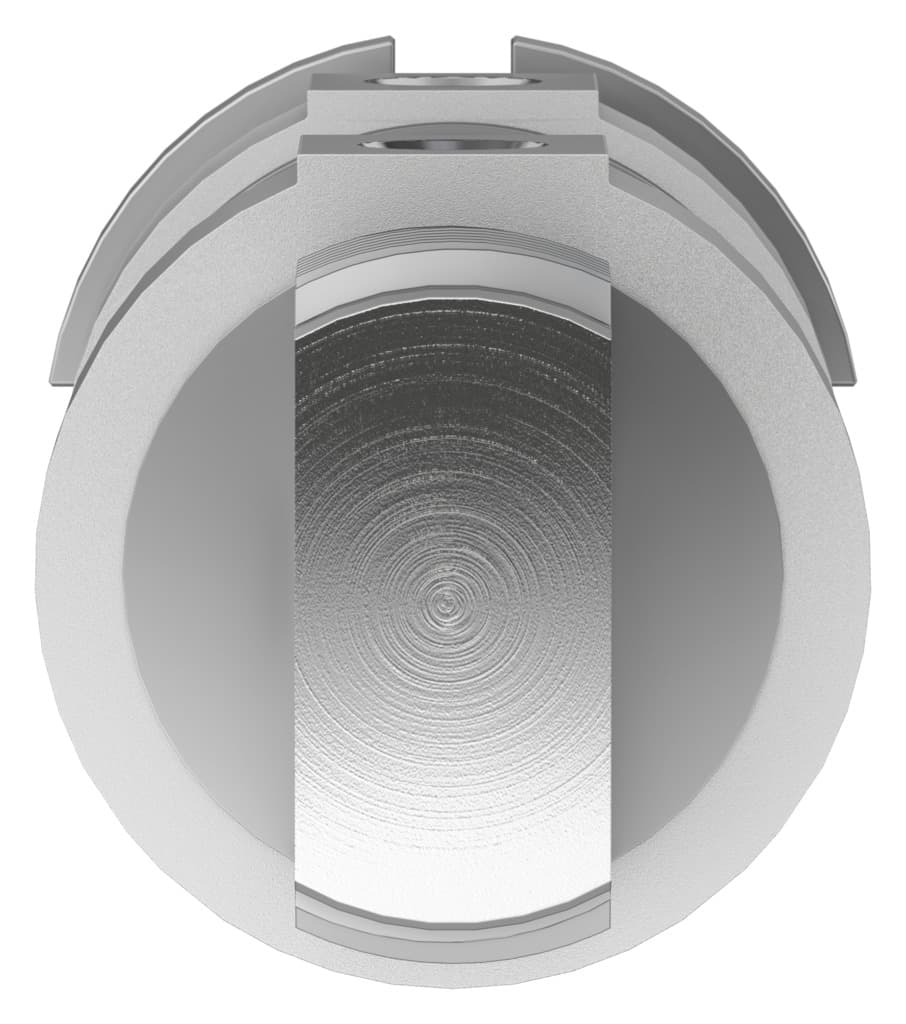

- 1The Festo DSNU-50-25-P-A round cylinder features a stroke of 25 mm and a piston diameter of 50 mm, making it suitable for a variety of industrial applications.
- 2This cylinder includes elastic cushioning rings/plates at both ends for smooth and stick-slip-free operation, ensuring consistent performance over the full stroke.
- 3The DSNU-50-25-P-A is designed for double-acting operation with compressed air to ISO 8573-1:2010, providing reliable and efficient motion control.
- 4With a corrosion resistance class of CRC 2 (moderate corrosion stress) and materials like high-alloyed steel for the piston rod and high-alloyed stainless steel for the cylinder tube, this cylinder offers robust protection against industrial environments.
- 5The Festo DSNU-50-25-P-A is compatible with proximity switches for position detection, enhancing its integration into automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 989.6N |
Theoretical force at 6 bar, advancing | 1178.1N | Moving mass | 476g |
Product weight | 1187g | Type of mounting | With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 196000 |
Specifications may be subject to change without notice
