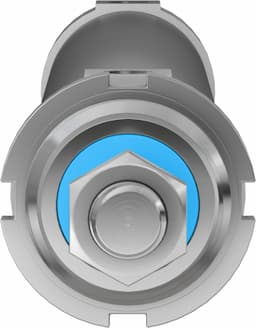

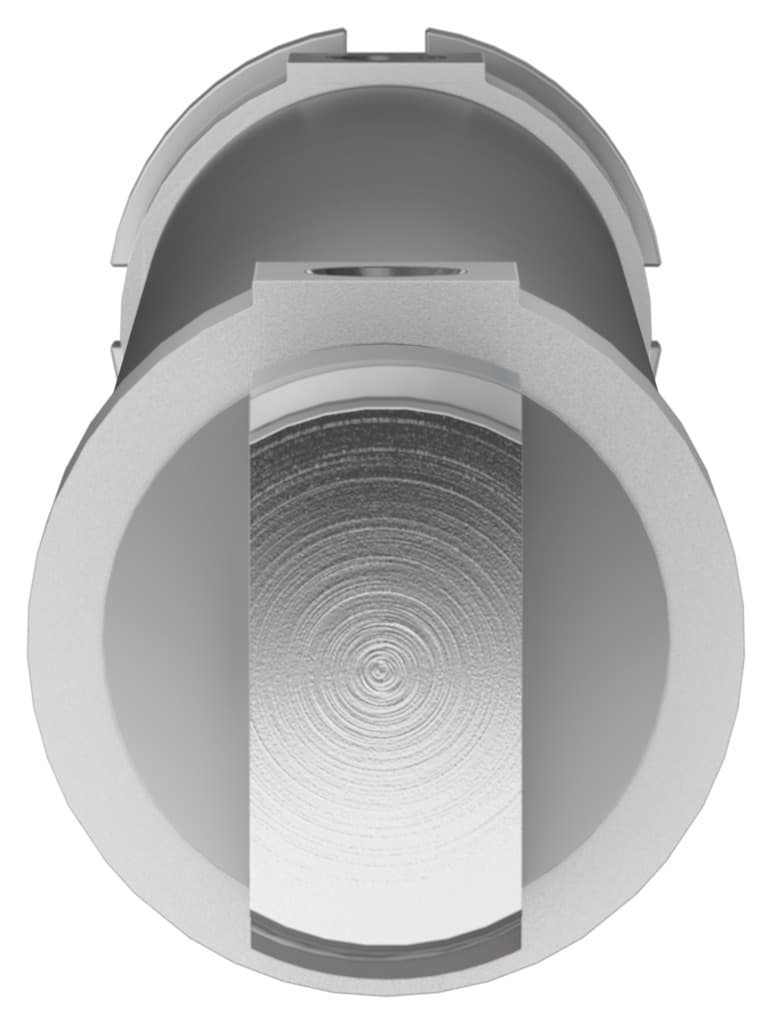

Product Model
dsnu-50-320-p-a
Selling Points
- 1The DSNU-50-320-P-A pneumatic cylinder offers a 320 mm stroke length, making it suitable for a wide range of automation applications.
- 2With a piston diameter of 50 mm, this cylinder provides ample space for precise movement and control.
- 3The M16x1.5 piston rod thread ensures secure and reliable connection to other pneumatic components.
- 4Equipped with elastic cushioning rings/pads at both ends, the cylinder provides smooth operation and reduces wear and tear.
- 5Designed for double-acting operation, the DSNU-50-320-P-A can handle both retracting and advancing motions efficiently, enhancing productivity in automation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 320mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 989.6N |
Theoretical force at 6 bar, advancing | 1178.1N | Moving mass | 1213g |
Product weight | 2367g | Type of mounting | With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 196009 |
Specifications may be subject to change without notice
