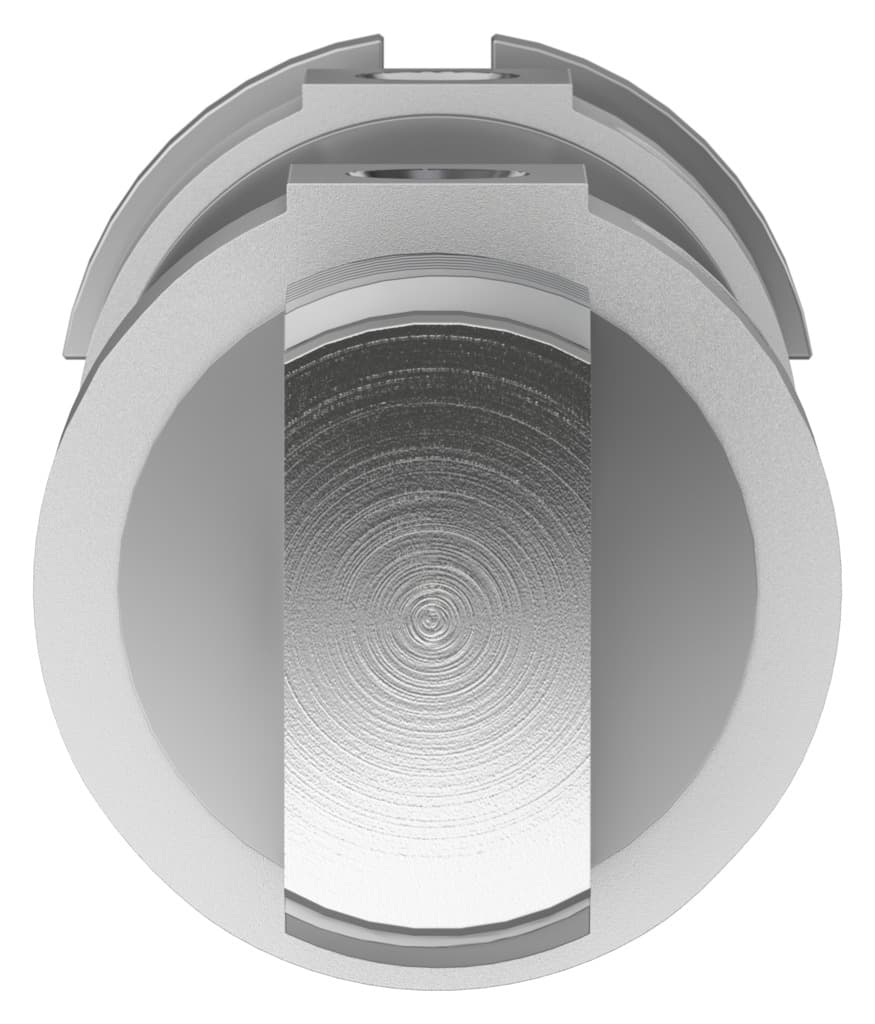

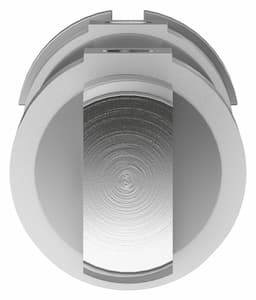

Festo DSNU-50-80-PPV-A Round Cylinder - High-Quality Pneumatic Solutions

Selling Points

1The DSNU-50-80-PPV-A features adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements.
2Designed for double-acting operations, this cylinder provides balanced forces in both the forward and return strokes.
3With a corrosion resistance class of 2, the DSNU-50-80-PPV-A is suitable for applications in moderate corrosion environments.
4Operating pressure ranges from 0.1 MPa to 1 MPa, making it versatile for various pneumatic applications.
5Constructed with high-alloy stainless steel for the cylinder barrel, high-alloy steel for the piston rod, and wrought aluminum alloy for the cover, ensuring durability and reliability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	50 mm
Piston rod thread	M16x1.5	Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991235
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Cushioning length	20mm
Theoretical force at 6 bar, retracting	989.6N	Theoretical force at 6 bar, advancing	1178.1N
Moving mass	613g	Product weight	1407g
Type of mounting	With accessories	Pneumatic connection	G1/4
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	196043

Specifications may be subject to change without notice
