Product Model

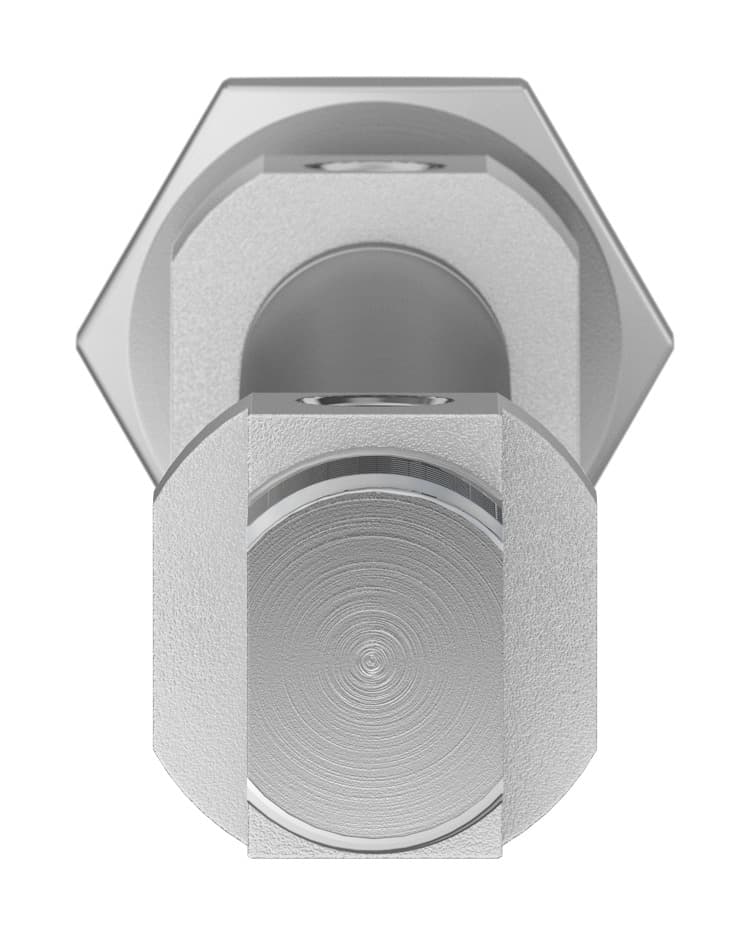

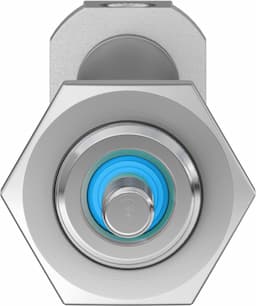

dsnu-5/16"-3"-p-a
Selling Points
- 1The DSNU-5/16"-3"-P-A pneumatic cylinder by Festo offers elastic cushioning at both ends, ensuring smooth and controlled movements in various industrial applications.
- 2Equipped with a built-in magnet, this cylinder facilitates reliable position sensing, making it perfect for applications requiring precise positioning.
- 3Designed according to the ISO 6432 standard, the DSNU-5/16"-3"-P-A cylinder ensures compatibility and reliability in a wide range of industrial settings.
- 4With a stroke length of 3 inches and a piston diameter of 5/16 inches, this cylinder provides a versatile solution for various pneumatic applications.
- 5The DSNU-5/16"-3"-P-A cylinder is part of Festo's extensive range of pneumatic components, offering a one-stop solution for industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 76.2mm | Piston diameter | 5/16" |
Piston rod thread | 6-32 UNC-2A | Based on norm | ISO 6432 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.02996J | Theoretical force at 6 bar, retracting | 22.686N |
Theoretical force at 6 bar, advancing | 30.248N | Moving mass at 0?mm stroke | 7.513g |
Additional moving mass per 10?mm stroke | 0.992g | Basic weight with 0?mm stroke | 34.587g |
Additional weight per 10?mm stroke | 2.41g | Type of mounting | With accessories |
Pneumatic connection | 10-32 UNF-2B | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 546396 |
Specifications may be subject to change without notice
